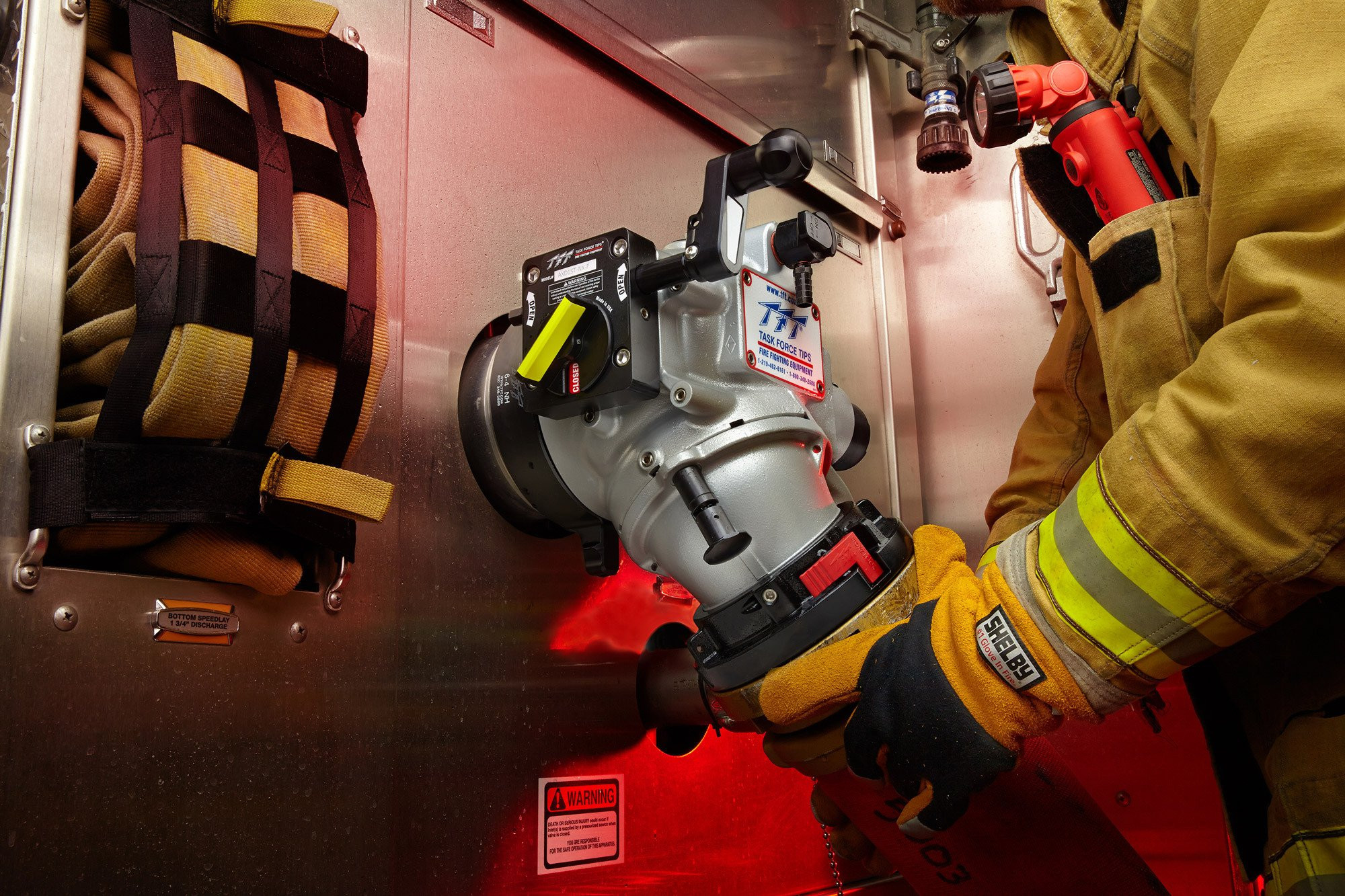

TFT Ball Intake Valve

MODEL: TFT-AP1ST-NX
TFT’s BIV’s are the ideal alternative to master intake valves integrated into the apparatus pump system because they eliminate the need for apparatus to be taken out of service for repair or maintenance of an intake valve. Units are constructed of stainless steel and lightweight, hard anodized and powder coated aluminum alloy. In addition, hose couplings and truck connections are attached to the valve using polymer bearing rings which provide electrical isolation to help prevent galvanic corrosion. Models are available with a choice of manual or remote controls, a fast acting pressure relief valve, and a unique swiveling inlet.
GET MORE INFORMATION SHOP PRODUCT

TFT Ball Intake Valve


Task Force Tips Ball Intake Valves:

  • Compact lightweight design fits easily into tight pump panel configurations
  •  5 Year Warranty against corrosion
  •  Integrated adjustable pressure relief valve provides fast reacting high volume protection from water hammers in the hose lines



  •  Individually serialized for tracking and continued service and technical support
  •  Highly visible valve position indicator and slow close operation exceeds all standards requirements
  •  Flow efficient waterway has less than 5 psi loss at the rated 1250gpm flow


Remote Control                         No

Profile                                        Standard

Waterway                                  5.25" (133mm)

Coupling Size Side A               6" (150mm)

Coupling Size Side B               5" (125mm)

Weight                                       30 lbs.


Detent Swivel                            No

L D H Inlet                                 Yes

L D H Outlet                              Yes

Pressure Relief Valve               Yes
