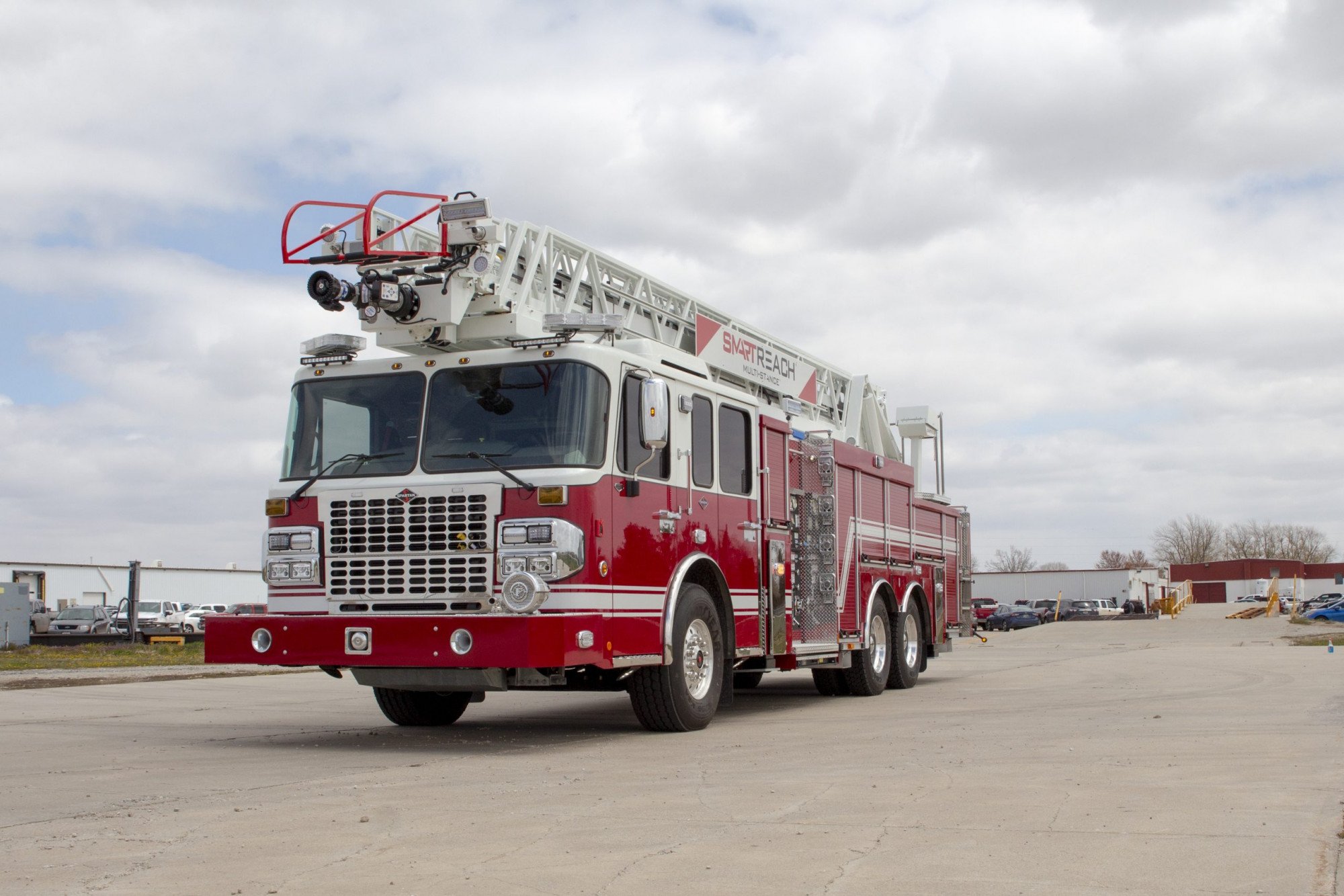

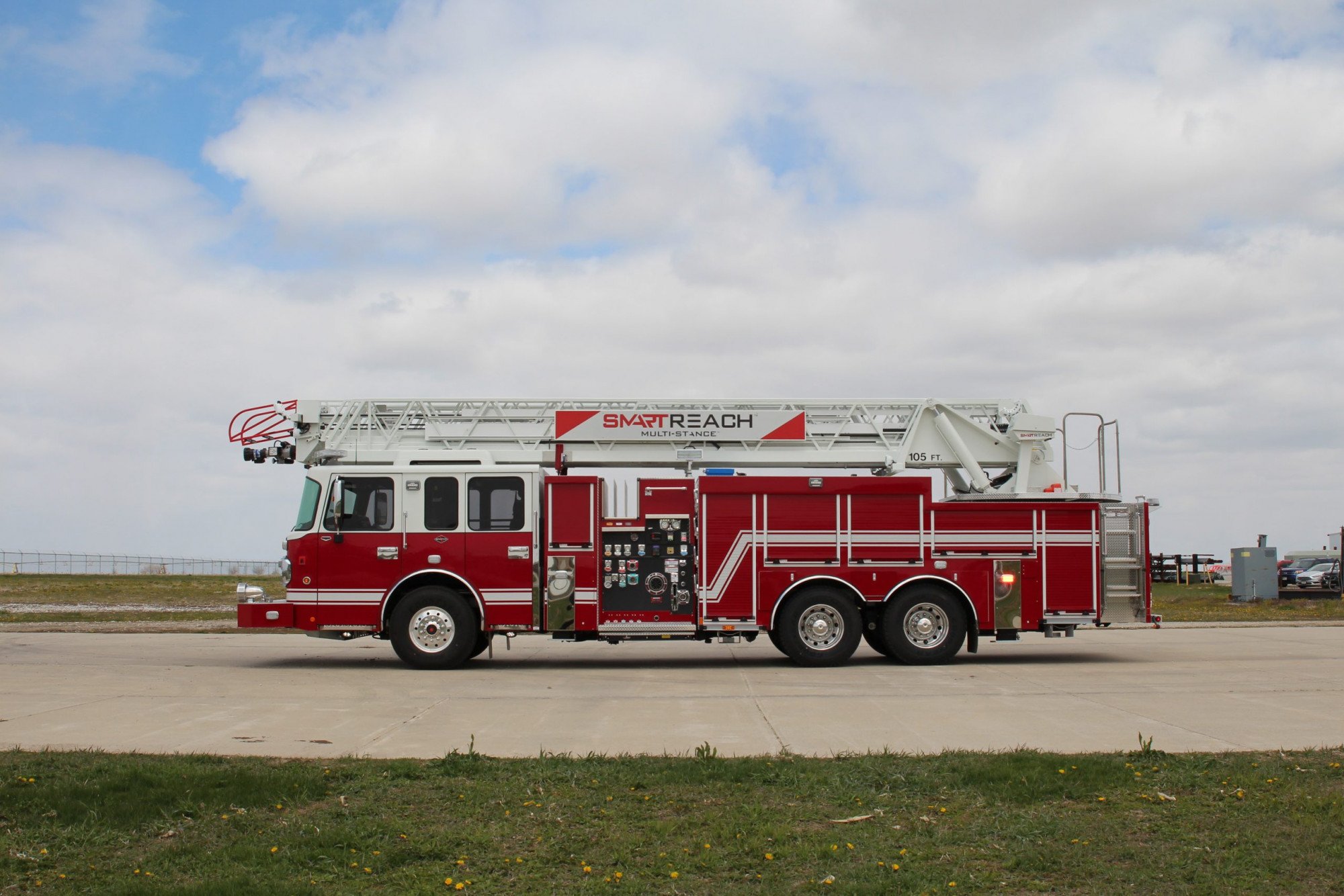

Smart Reach 107' Rear Mount Quint

CHASSIS INFORMATION

Chassis: Spartan Gladiator MFD Flat Roof

Engine: Cummins X15 565 HP

Transmission: Allison EVS 4000

Seating: Six (6) USSC Valor Seats

Front Axle: 24,000lb Hendrickson STEERTEK Leaf Spring

Back Axle: 54,000lb Hendrickson Firemaax Air

Wheelbase: 225"

BODY INFORMATION

Body Length: 40' 7"

Tank Size: 480 Gallons Water / 20 Gallons Foam

Compartment Doors: ROM Painted Roll Up Doors

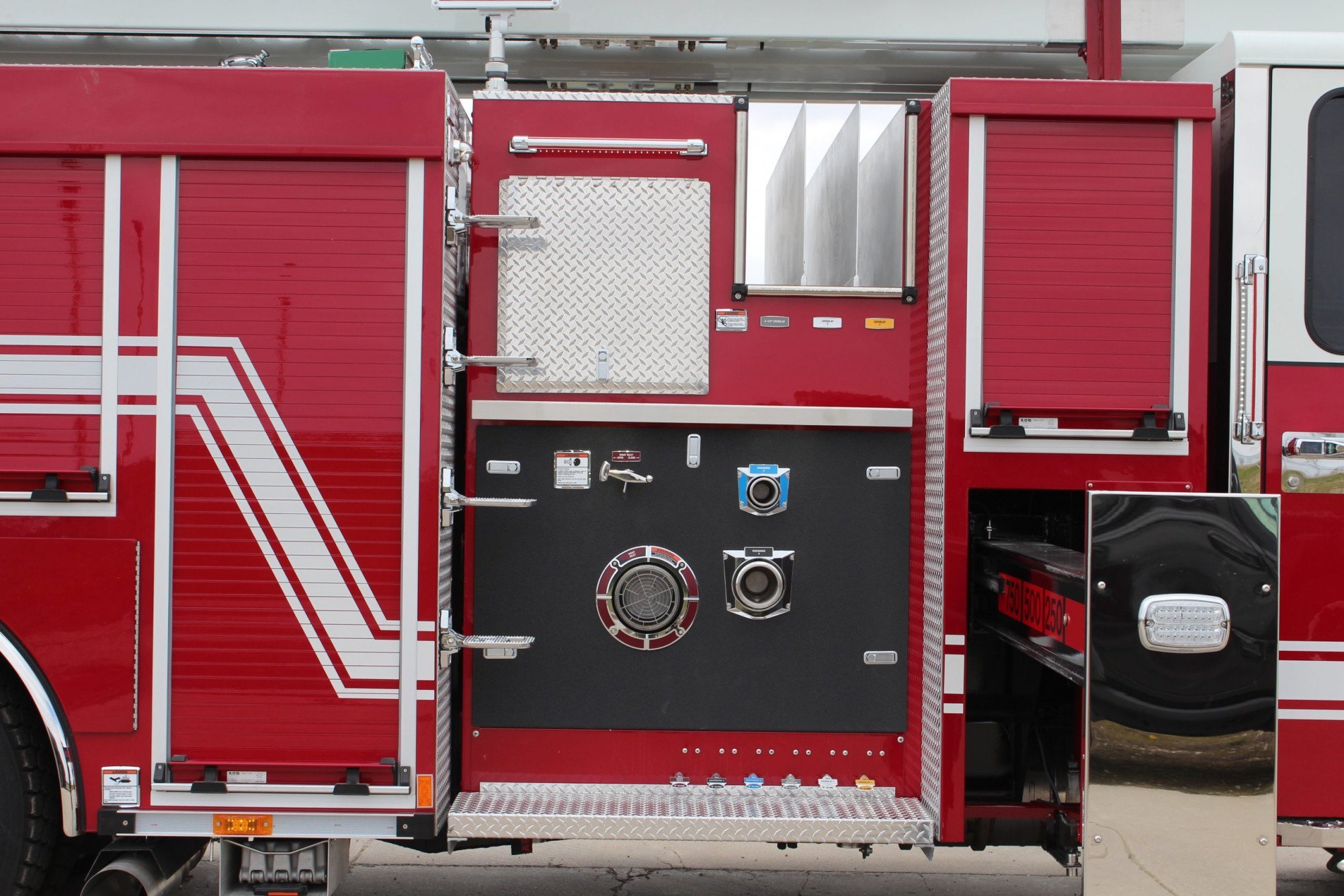

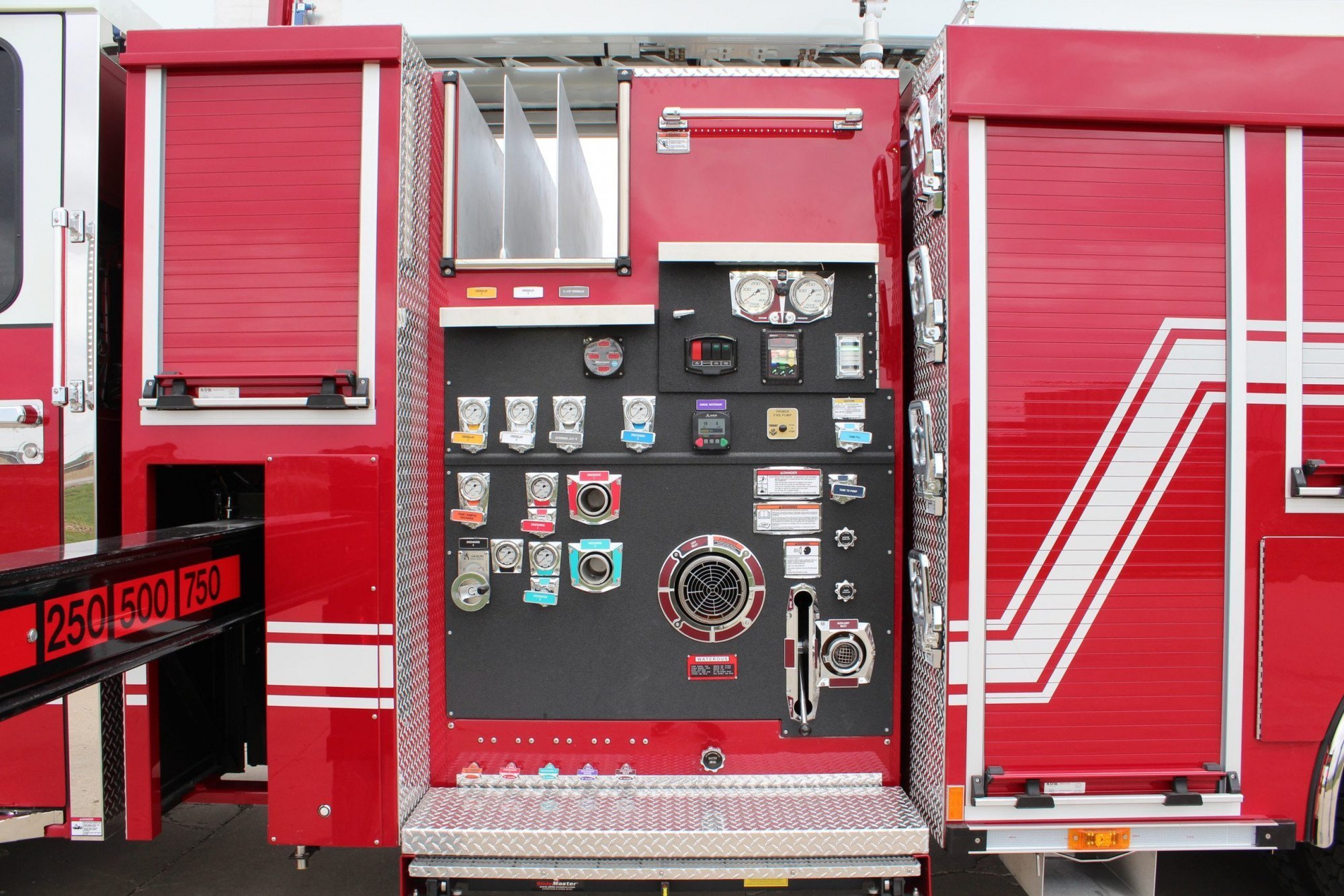

PUMP & PLUMBING INFORMATION

Pump Manufacturer: Waterous

Pump Size: 2000 GPM

Foam System: FoamPro 1600

Number of Discharges: 8

Foam Discharges: 4

Deck Gun Type: N/A

LIGHTING PACKAGE INFORMATION

Front Scene Lighting: Two (2) HiViz Firetech

Side Scene Lighting:  Two (2) HIViz Firetech, One (1) Whelen Pioneer

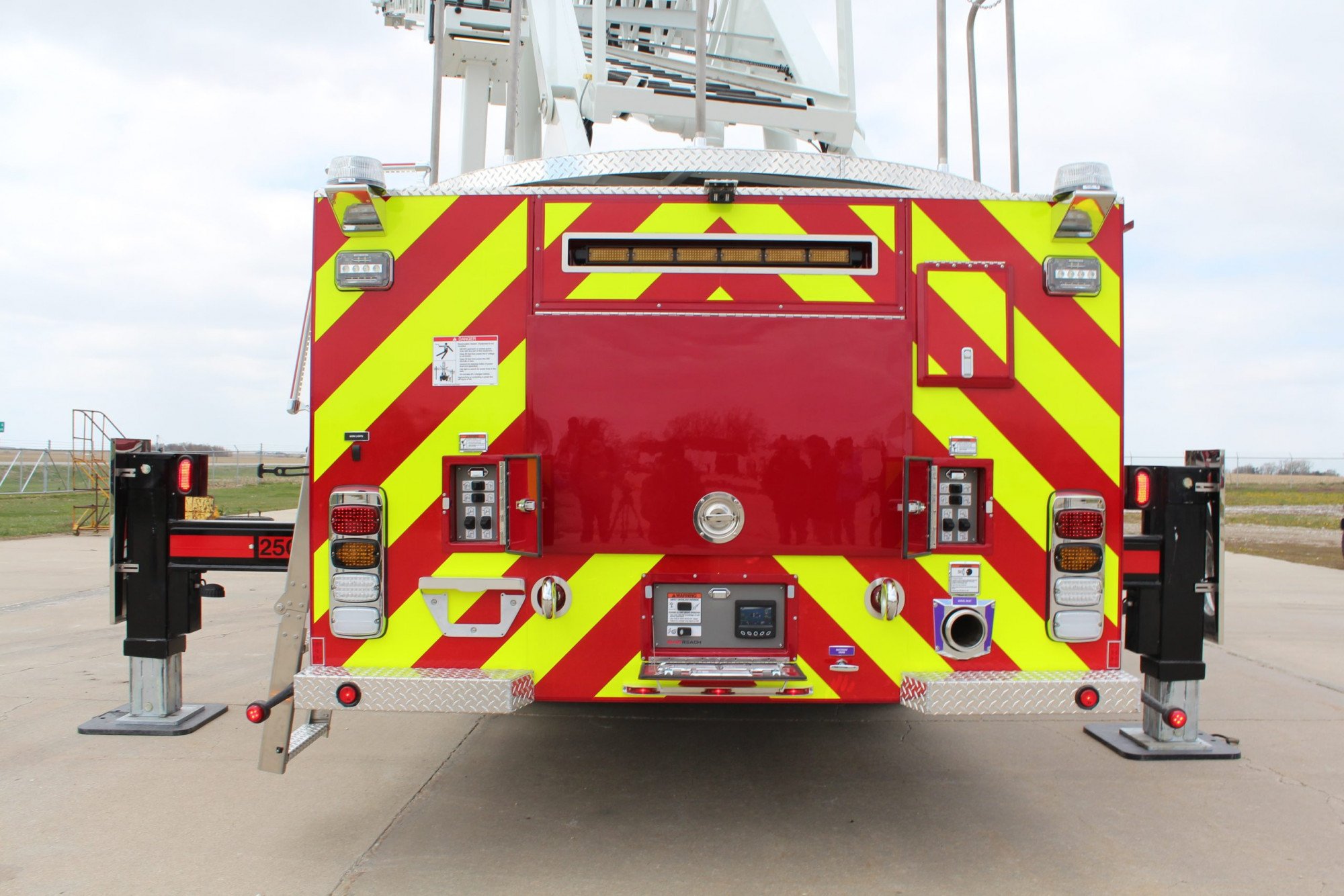

Rear Scene Lighting: Two (2) HIViz Firetech

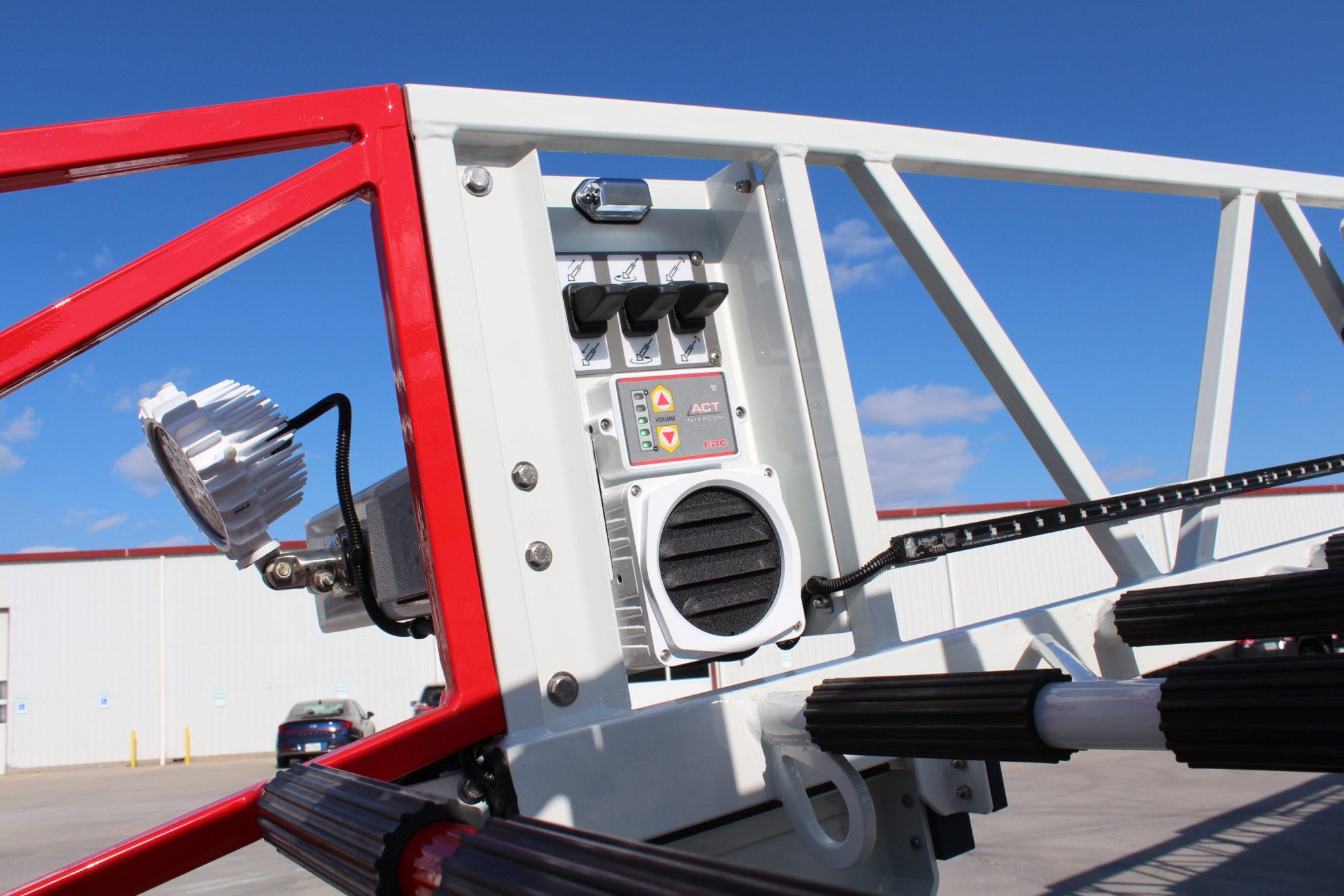

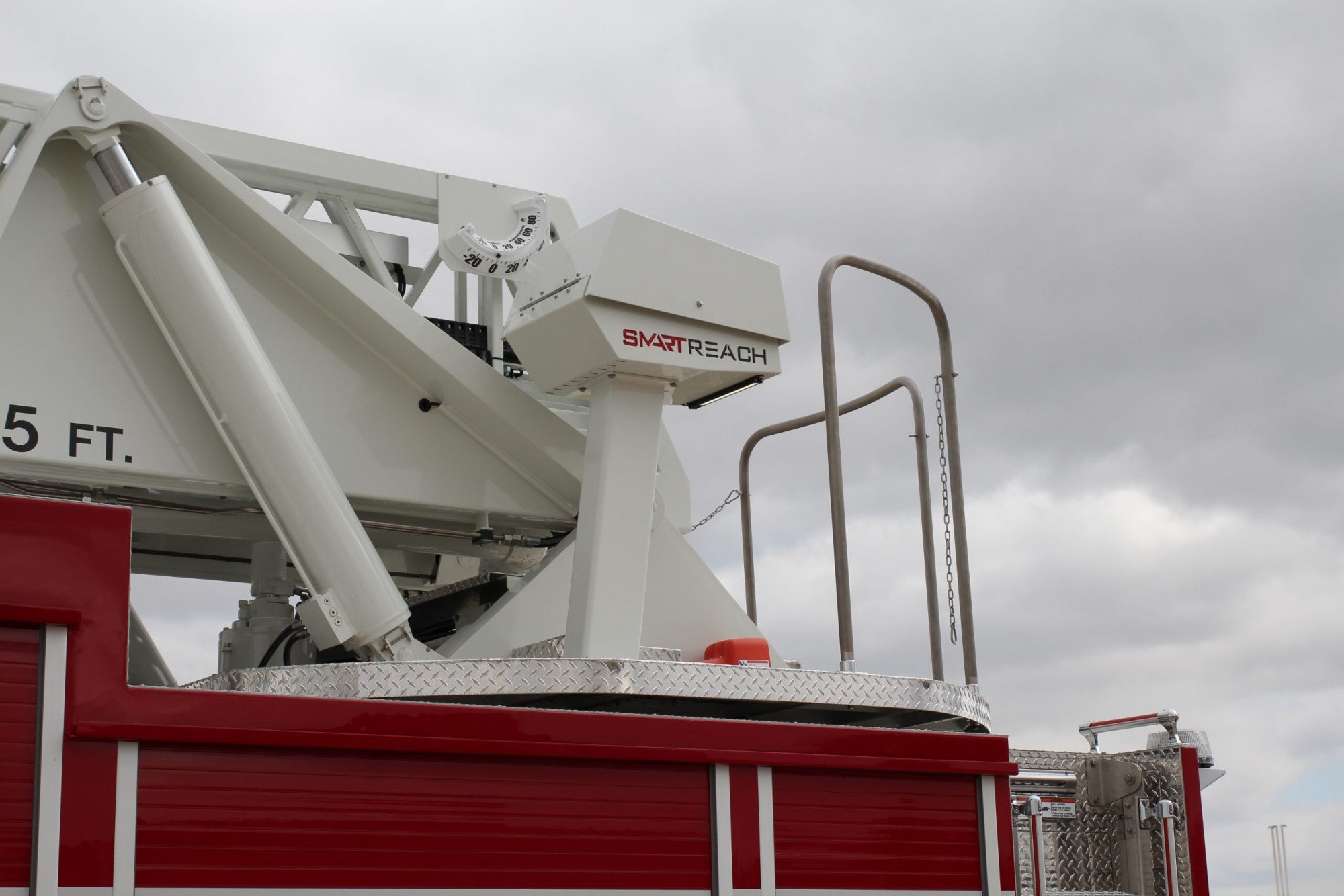

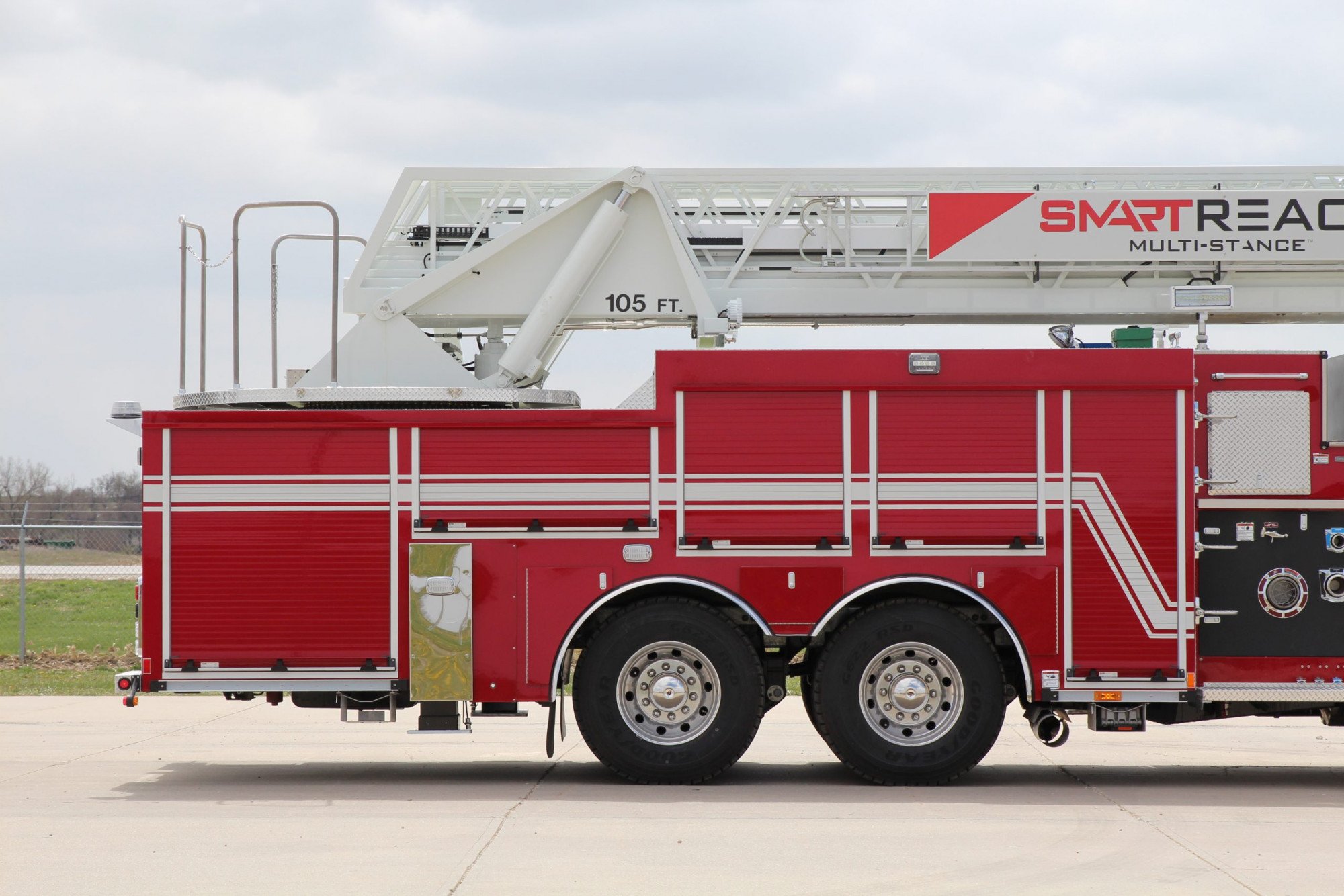

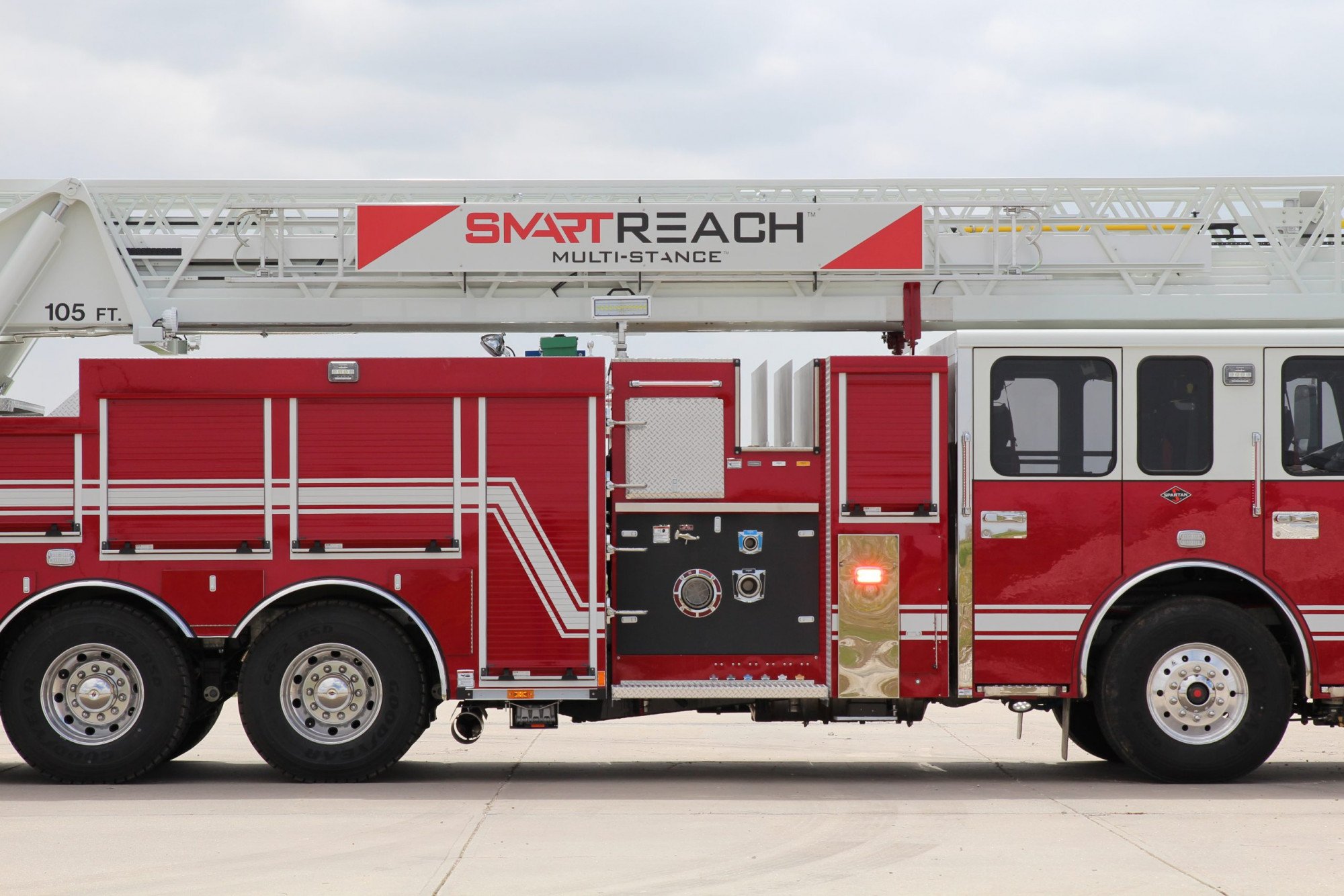

AERIAL INFORMATION

Length: 107'

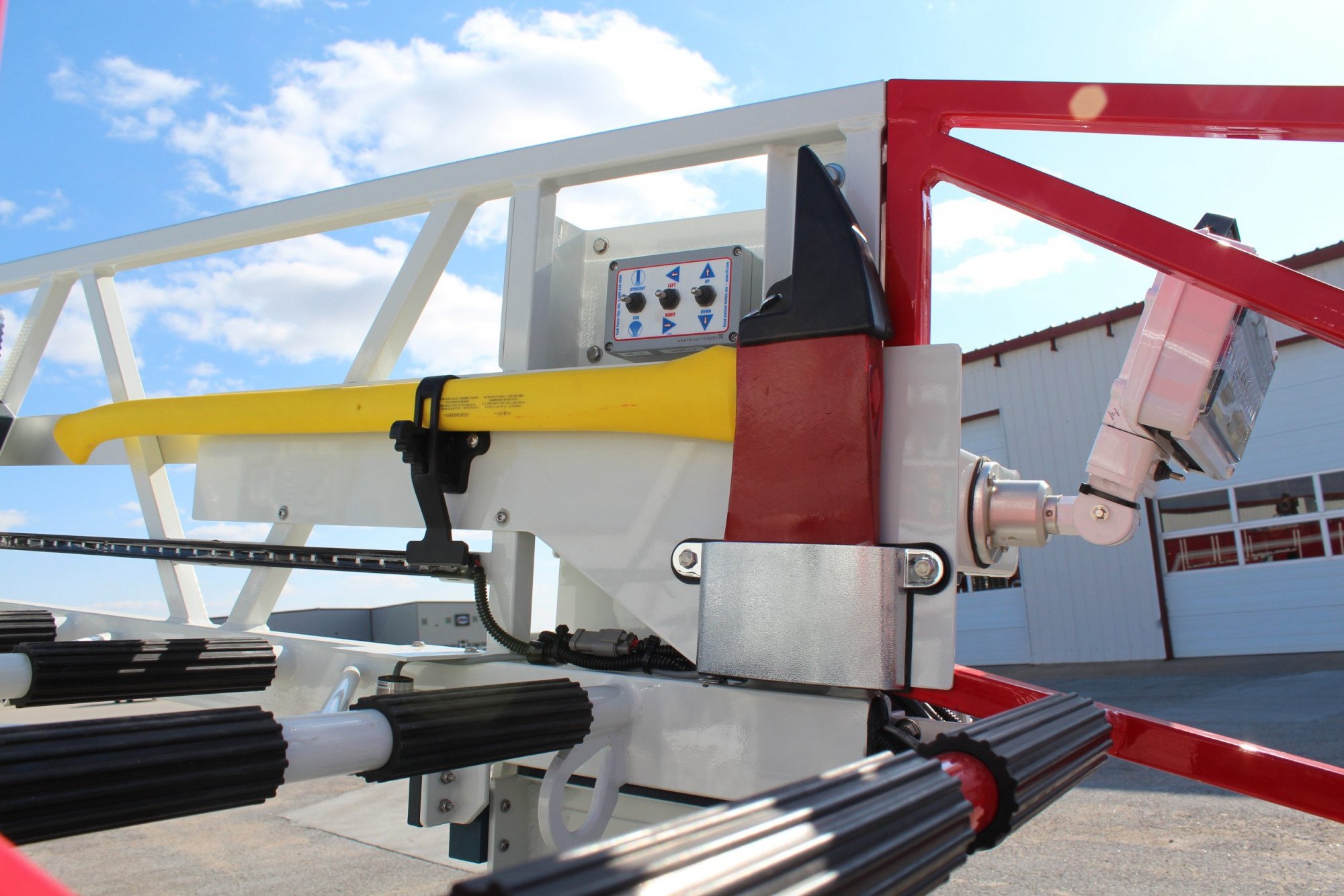

Special Options: 500lb. Rappelling Arm

Tip Load:

Rung Lighting: Blue LED

Tip Lights: 2 Whelen PFP1 Pioneer Plus Super LED

Outrigger Stance:

Flow Amount:

Gun Type/Flow:

Special Systems:
