Bullard TXS

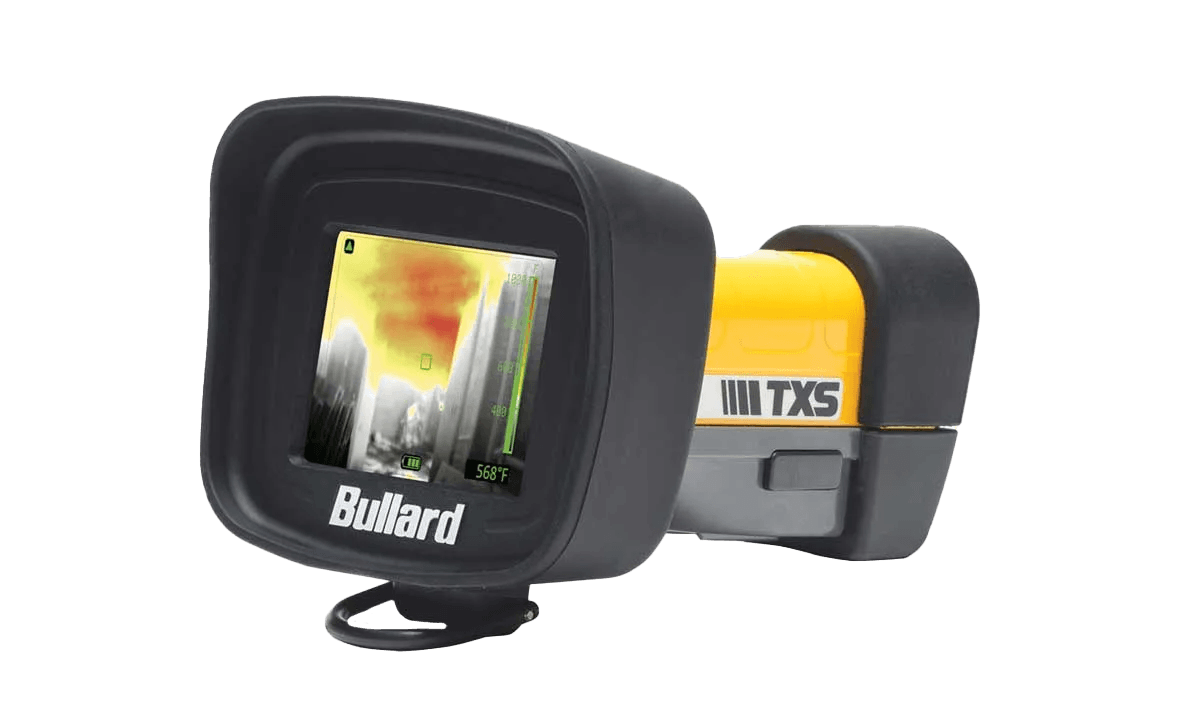

The Bullard TXS is Better Under Fire. An intuitive tool packed in just 1.6 pounds (incl. battery), the Bullard TXS is essential for every department. TXS was designed for ease-of-use with its one-button operation, ergonomic design, and convenient size. TXS gives you the vital information you need, without weighing you down. The Bullard TXS Thermal Imager is your high deployment solution when budget, quality, and performance are essential.
GET MORE INFORMATION Request For Quote

Bullard TXS

  • Crisp, Clear Imagery
      • Bullard’s proprietary software algorithms and image interpretation enhance basic hardware to deliver crisp, clear imagery with the fastest refresh performance in the industry.

  • Long Operating Life

      • Dependable battery with 6 hours of continuous use

  • Simplistic Durability

      • Only one switch to activate the unit while withstanding temperature bursts of 500°F (260°C) without operational impact or damage; 5-year warrant

  • Ergonomically Correct

      • Compact and ergonomically correct form factor optimizes viewing angle while reducing wrist and elbow stresses and localized muscle fatigue

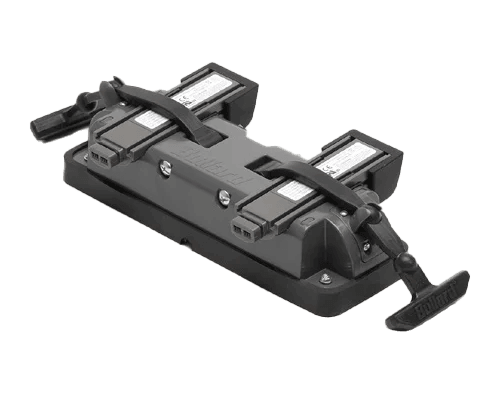

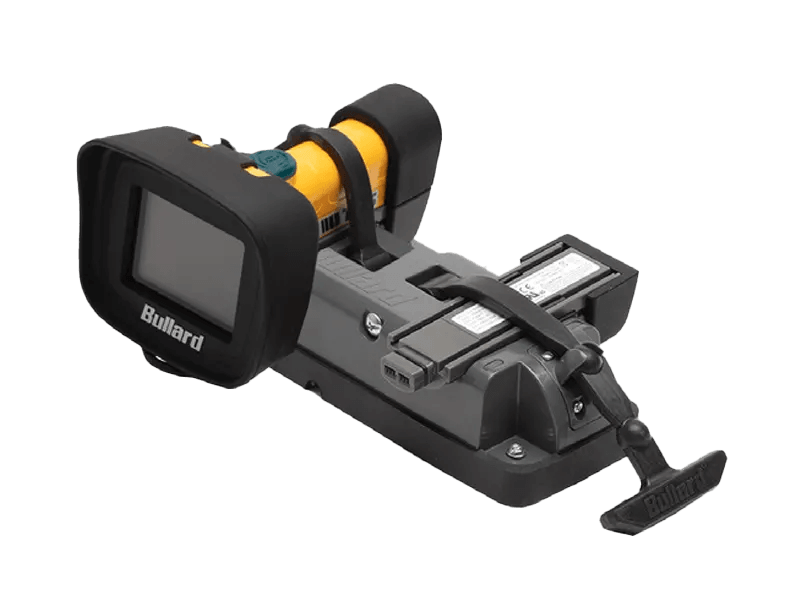

  • Optional truck mount charger available, charges two imagers, two batteries, or one battery/one imager simultaneously.
  • Automatic gain adjustment system that switches between high and low gain mode
  • Up to 6-hours of continuous run time
  • 5-year warranty on thermal imager with 48-hour guaranteed warranty repair turnover
  • Made in Kentucky, USA

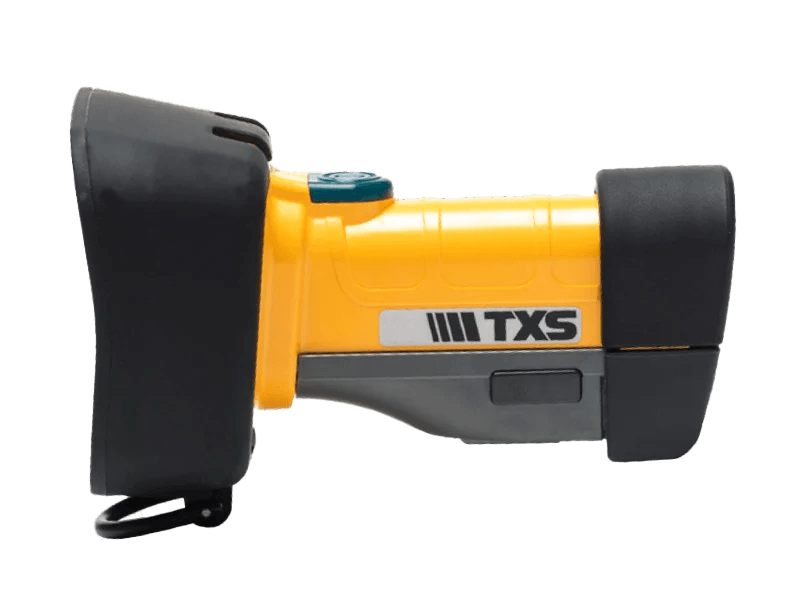

  • Compact and lightweight at 1.6lbs
  • Super red hot intuitive and consistent colorization
  • Electrical:
    • Lithium-ion Rechargeable Battery
    • Battery Capacity - 3500 mAh
    • Operating Time - 6 hours in routine conditions
    • Recharge Time - 3.5 hours from fully depleted
  • Infrared Detector:
    • Detector Type - Microbolometer
    • Vanadium Oxide Detector Sensing Material
    • Detector Resolution 320 x 240
    • 7.5-13.5 µ Spectral Response
    • 30 Hz Update Rate
    • NETD < 60 mK
    • Dynamic Range - 1022° F
    • Pixel Pitch - 12 µm
  • Lens:
    • Germanium lens
    • Field of View - 40° V x 50° H
    • Focus - 1 m to ?
    • Speed - f/1.1

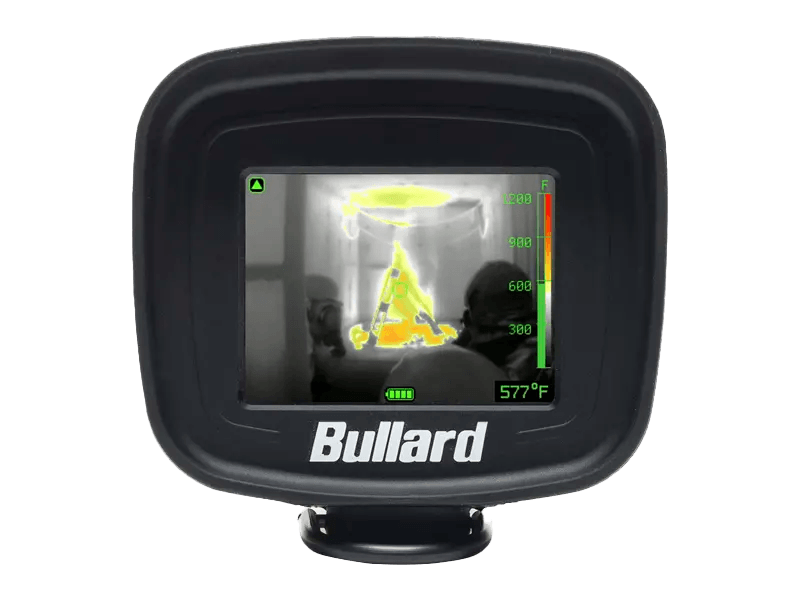

  • Display:
    • Digital Liquid Crystal Display (LCD)
    • Size - 3.5" (89 mm) Diagonal TFT Active Matrix
    • RGB Pixel Format
    • Brightness - 500 cd/m2 (minimum)
    • Contrast Ratio - 350:1 (typical)
    • Viewing Angle (Typical) - Top = 60°, Bottom = 40°, Left/Right = 60°
  • Performance:
    • 500°F (260ºC) Heat Resistance - 5 minutes with no damage to electronics
    • 300°F (150 ºC) Heat Resistance - 15 minutes of continuous operation with no damage
    • 4°F (-20ºC) Cold Resistance - Continued operation
    • Impact Resistance - 2 meter drops on concrete with no damage
    • Hazardous Locations - NEC/CEC Class 1, Division 2; ANSI/ISA-12.12.01-2015; CSA-C22.2 No. 60079-0:15; IEC 60079-0:2011, MOD
  • Ultem Thermoplastic Housing
  • Numeric and Bar Style Temperature Measurement
  • Super Red Hot Colorization Engages automatically above 500°F
