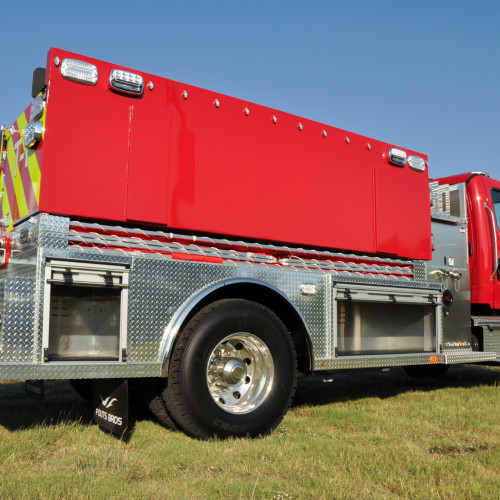

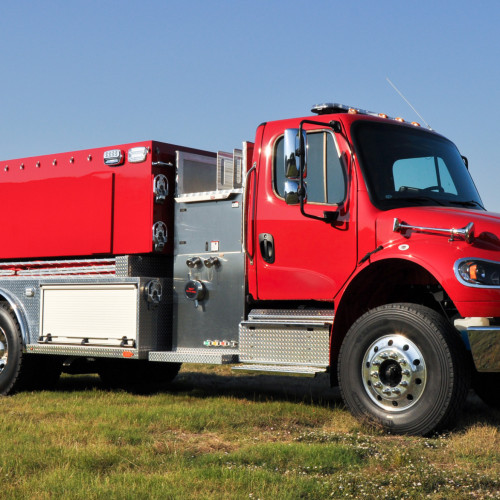

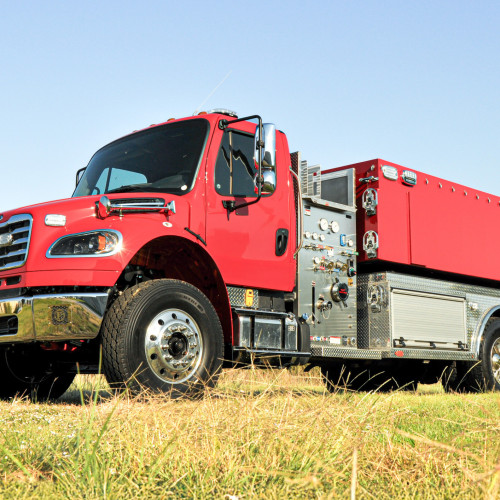

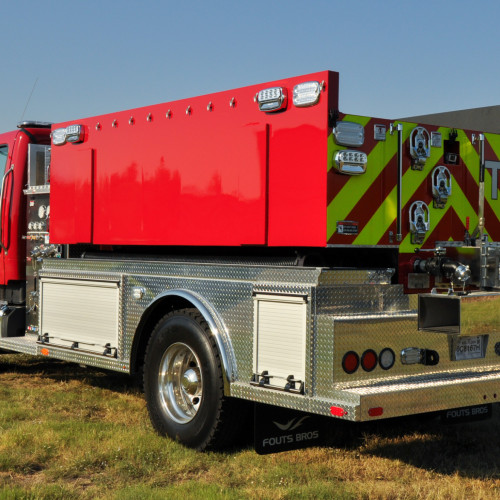

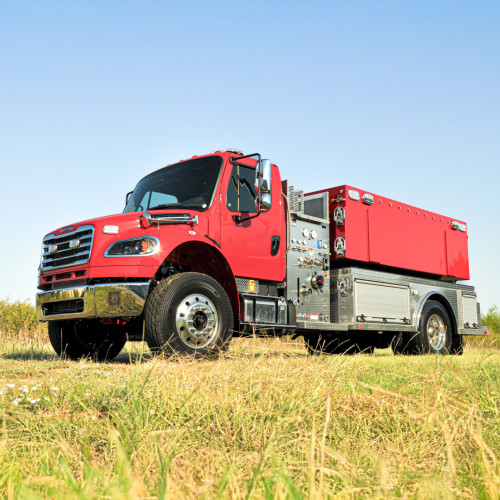

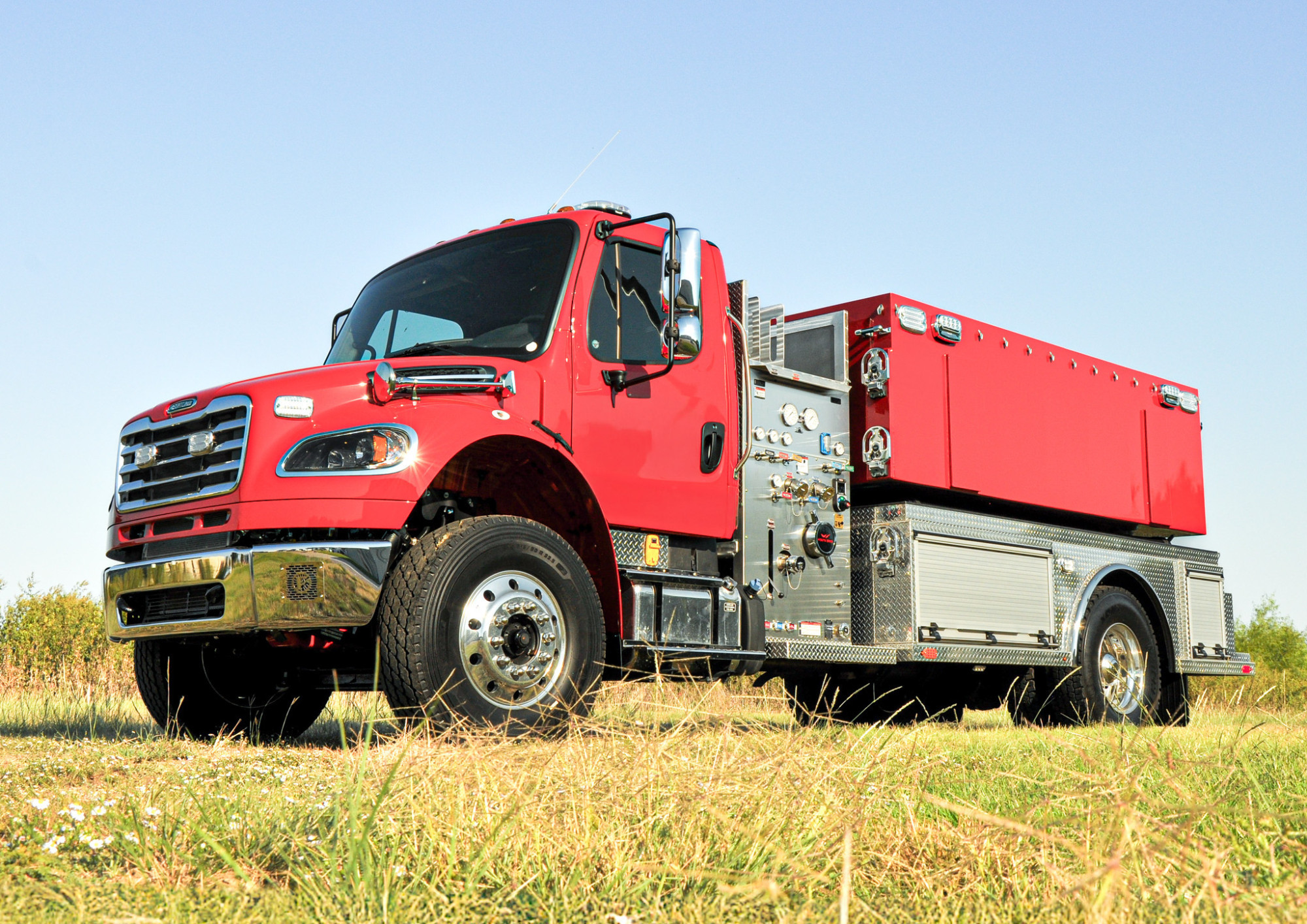

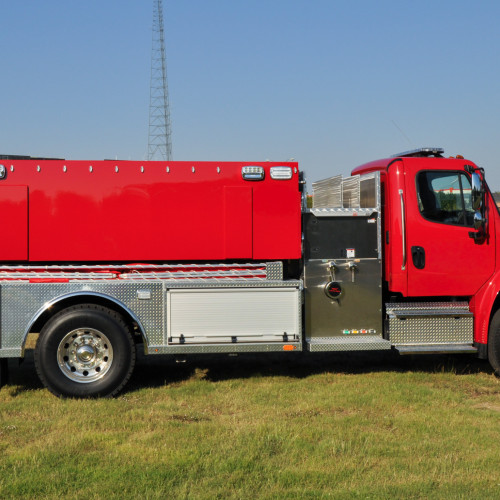

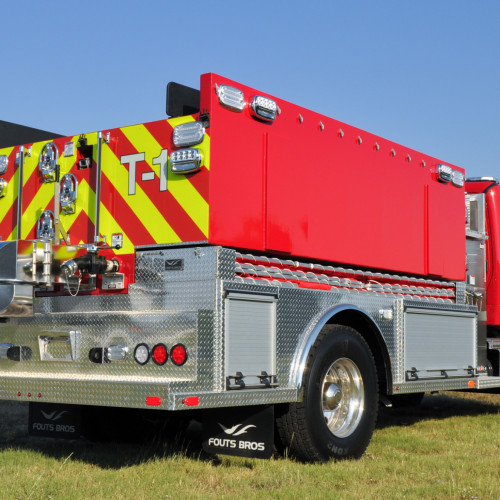

Freightliner 2000-Gal Demo

OVERVIEW

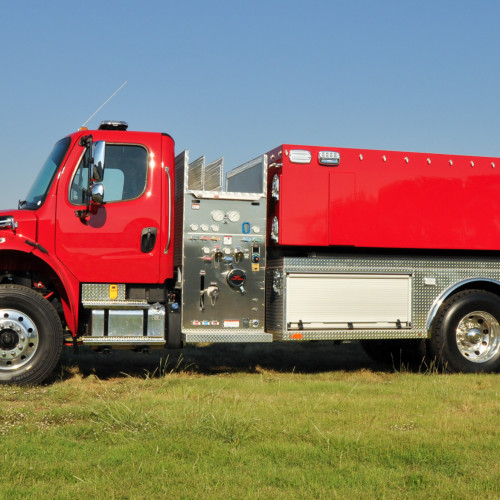

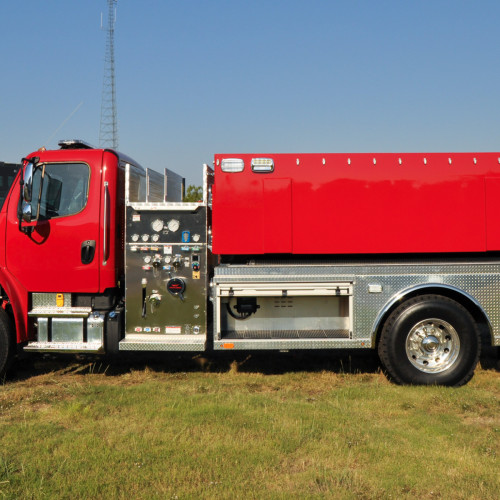

The 2000-gallon tanker is the leanest tanker in the Fouts Fire line, built on a Freightliner chassis, with all the features you need for fast deployment and containment across a variety of calls. When you face bridges with weight restrictions or long, steep driveways, this tanker cannot be beat.

Get Started

OVERVIEW

The 2000-gallon tanker is the leanest tanker in the Fouts Fire line, built on a Freightliner chassis, with all the features you need for fast deployment and containment across a variety of calls. When you face bridges with weight restrictions or long, steep driveways, this tanker cannot be beat.

Get Started

Freightliner 2000-Gal Demo

Tanker

Fouts Fire

Freightliner M2 106

Cummins L9 360 HP

October 2024

2000

Hale, MBP 1000 GPM

Chassis Details
Chassis

Freightliner, M2 106, 2 Door, Single Axle

Engine

Cummins L9 360 HP

Transmission

Allison 3000 Automatic

GVW

40 600 LBS. (Front Axle: 14 600 LBS. | Rear Axle: 26 000 LBS.)

Wheels

Alcoa Mirror Polish Aluminum

Battery Conditioner

Kussmaul Chief 6012 series battery conditioner

Auxiliary Air Compressor

Kussmaul 12V auxiliary air compressor

Fuel Tank

50 Gallons

Air Horns

Dual Stutter Tone

Center Console

Included

Back-up Alarm

One (1) 97 DB back-up alarm

Body Details
Tank

2000 US gallons

Hard Suction

Two (2) 6.00" X 10" sections of suction hoses

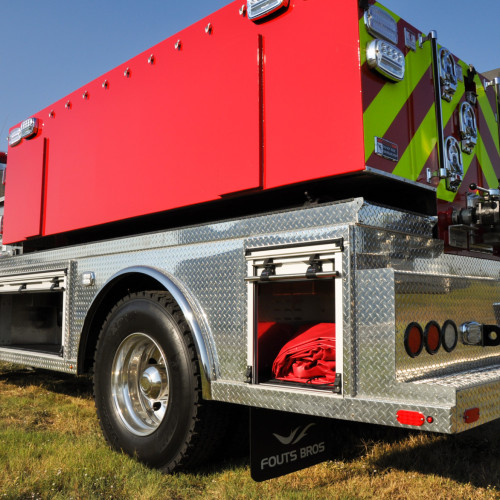

Body

Aluminum diamond plate

Compartment Door Type

Amdor roll-up doors, satin finish

Compartment L1 & R1

~60.00"W X 26.00"D X 27.00"H

Compartment L2 & R2

~24.00"W X 26.00"D X 27.00"H

Rear Camera Notch

Recessed mounting area for a backup camera

Rear Dump Valve

Swivel and manual extension, Stainless Steel

Direct Tank Fill

Two (2) 2.5" Akron Valve

Hose Bed Cover

Vinyl

Additional

Custom in-house graphics can be applied to the unit

Pump Plumbing Details
Pump

Hale, MBP, 1000 GPM, Side Mount

Special Features

Pump and Roll Capable

Power Take Off

A ten (10) bolt Chelsea model 870-XDFJP-B5XV

Pump Shift

Stationary pumping - MBP

Hose Threads

NST hose threads

Master Pump Drain

A Class 1 master pump drain

Priming System

A Trident model manual AirPrime

Intake Relief Valve

Class1 stainless-steel intake relief valve

Pressure Governor System

Fire Research Pump Boss Max series PBA501-D00

Water Level Gauge

One (1) Innovative Controls Soft-Glo model 3050869-03-W-37

Additional

Two (2) 1 3/4" Crosslays, One (1) 2.5" Crosslay, & One (1) 2.5" Inlet

Lighting Details
12 Volt Electrical System

Yes

Cab Ground Lights

Two (2) LED chassis ground lights

Ground Lights

Pump panel, front of body, & rear step

Ground Lights Activation

Ground lights activate when the parking brake is applied

Emergency Lights

Whelen M Series Emergency Lights

Scene Lights

Whelen M Series Emergency Lights

Lightbar

One (1) Whelen model JE2NFPA 56.00" lightbar - Red/White

Electric Siren and Control

One (1) Whelen model 295SLSA1 electric siren and control

Siren Speaker

One (1) Federal Signal model ES100
