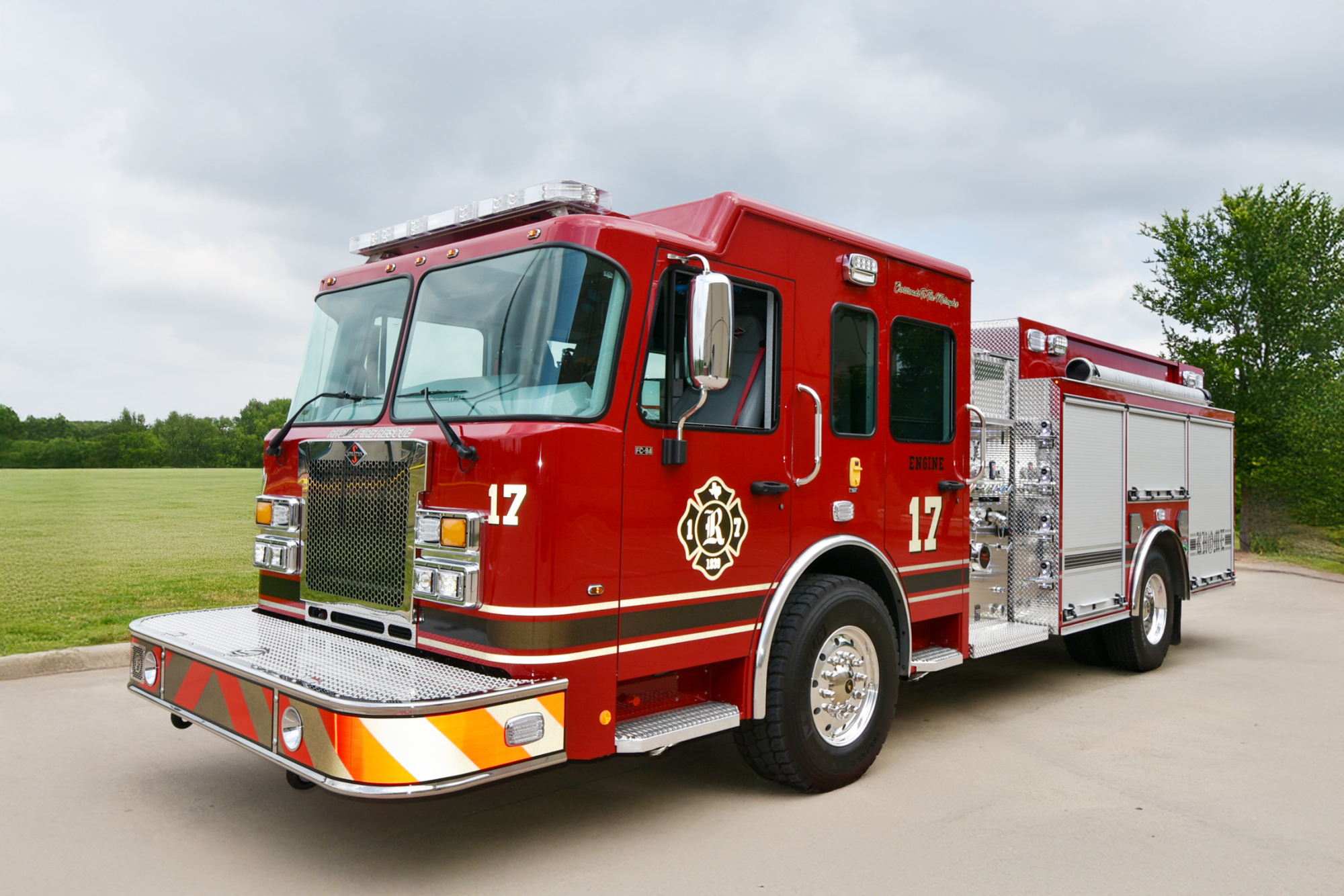

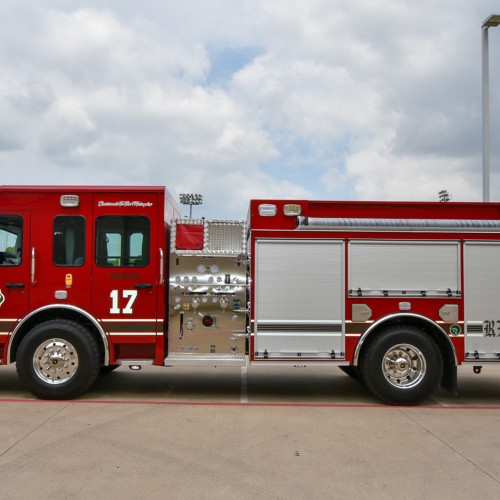

Fouts Fire FB-94 Pumper

OVERVIEW

Meet the brand new FB-94 Pumper from Fouts Fire, completely redesigned for 2024. Low hose bed. Extended front bumper. Tons of storage. Upgraded lighting and siren package.

The same unbeatable Spartan FC-94 chassis.

Get Started

OVERVIEW

Meet the brand new FB-94 Pumper from Fouts Fire, completely redesigned for 2024. Low hose bed. Extended front bumper. Tons of storage. Upgraded lighting and siren package.

The same unbeatable Spartan FC-94 chassis.

Get Started

Fouts Fire FB-94 Pumper

Engine

Fouts Fire

76971

Cummins L9 450 HP

Side Mount

January 2025

1000

Hale QMax 1500 GPM

Click To View Drawing
Click to View Specs
Outline Photos

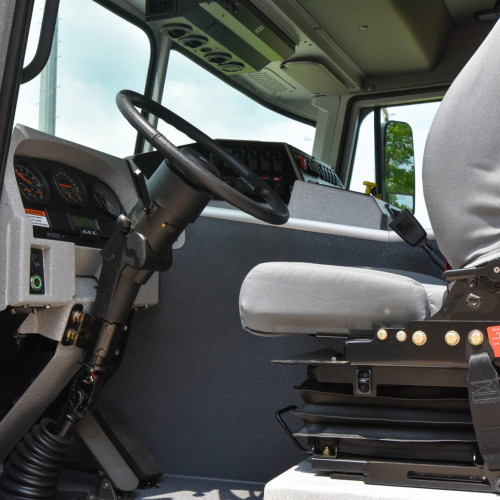

Chassis Details
Chassis

Spartan FC-94, 4 Door Crew Cab, Single Axle

Engine

Cummins L9, 450 HP

Transmission

Allison 3000, Automatic

GVW

45 000 LBS.

Bumper

Extended 24.00" w/ Compartment

Dual USB Port

One (1) Kussmaul model 091-219-5 dual USB port

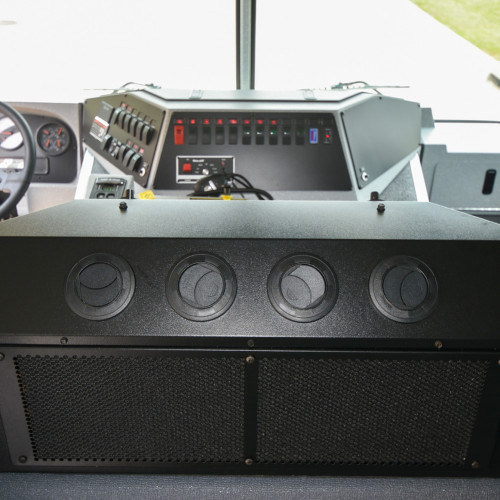

Electric Siren & Control

Yes

Electric Siren Speaker

Yes

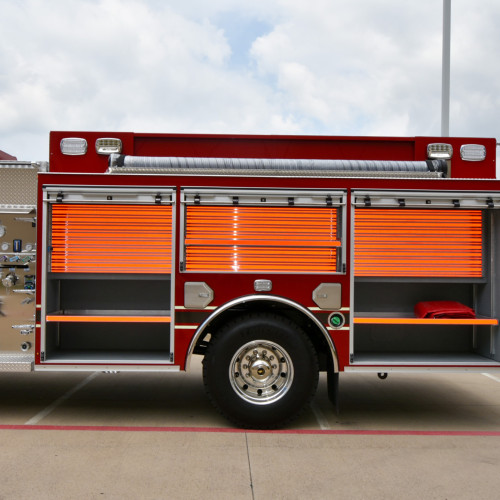

Body Details
Tank Capacity

1000 gallons

Hard Suction

Two (2) 6.00" X 10" section(s) of suction hose(s)

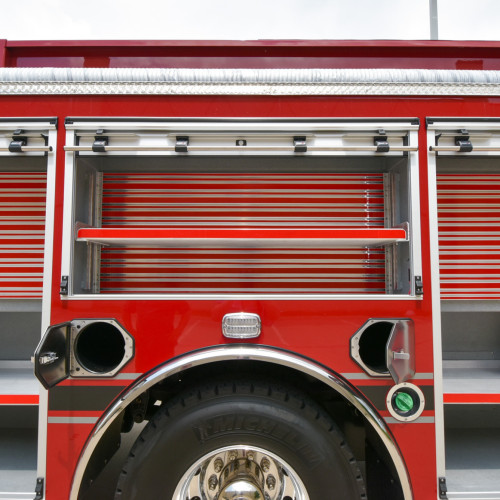

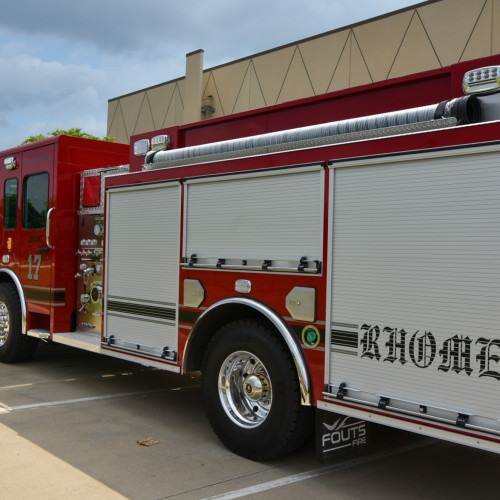

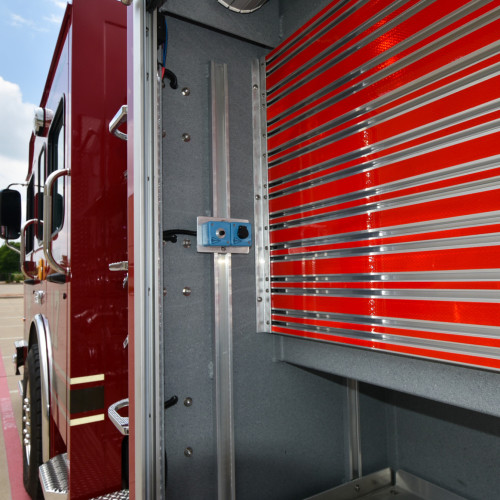

Compartment Doors

Roll-up doors, satin finish

Door Locks

Keys, manual

Compartment Lights

One (1) full height Luma Bar LED strip

Compartment L1 & R1

46.50" W x 62.00"H, with adjustable shelf

Compartment L2 & R2

59.00" W x 29.50"H, with adjustable shelf

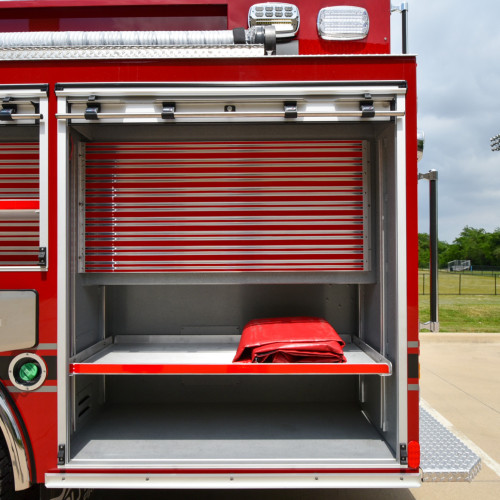

Compartment L3 & R3

56.50" W x 62.00"H, with adjustable shelf

Compartment CR1

42.00" W x 26.00" H, with adjustable shelf

SCBA Bottle Compartments

4

Step Lights Activation

With parking brake

Pump Plumbing Details
Pump

Hale, QMAX, 1500 GPM

Transmission Lock-up Device

Yes

Hose Threads

NST

Priming System

Trident model manual AirPrime without gauge

Thermal Relief Valve

Hale model TRV120

Pressure Governor System

Fire Research Pump Boss Max

Water Level Gauge Pump

One (1) Hale model – "ITL-40R"

Water Level Gauge Cab

One (1) Hale Intelli-Tank model 610-00049

Lighting Details
12 Volt Electrical System

Yes

Ground Lights

Cab, pump panel, front of body, & rear step

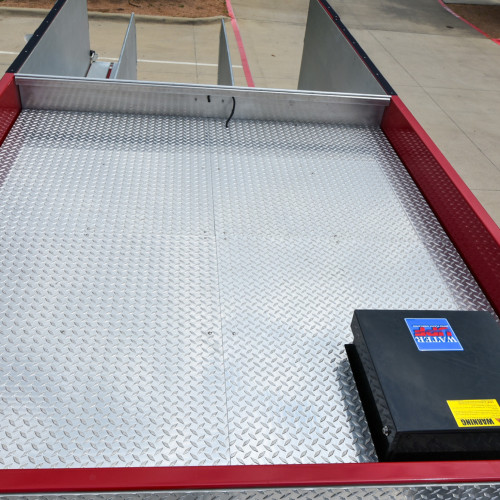

Hose Bed Loading Light

Yes, 12V LED

Upper Scene Lights

Four (4) pairs of Whelen model M9 EZ Series M92SLC

Lightbar

One (1) Whelen Freedom IV LED 72.00" lightbar

Upper Warning Lights

Six (6) Whelen model M9RC (red in color with clear lens)

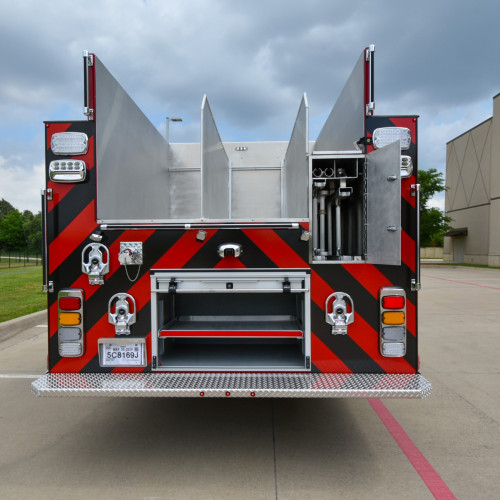

Lower Warning Lights

Two (2) Whelen model M6R and four (4) Whelen model M6RC (both models red in color with clear lens)
