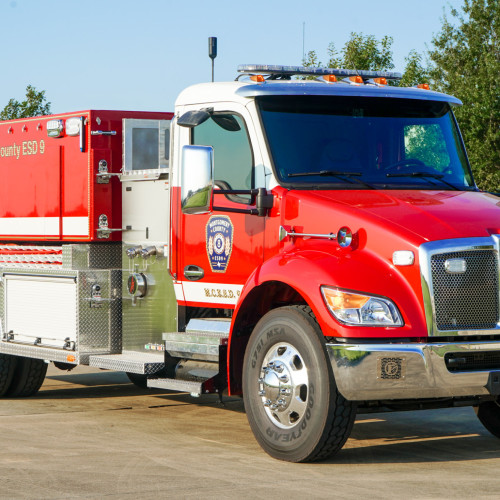

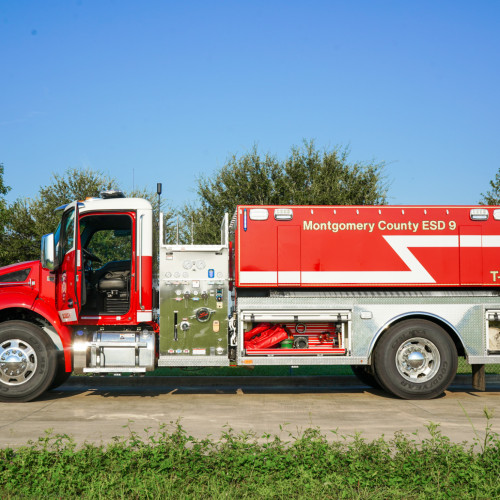

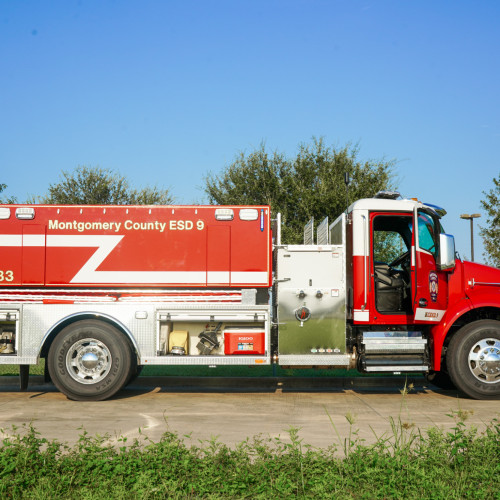

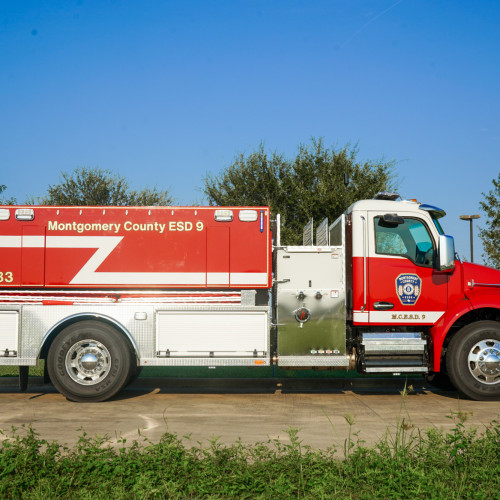

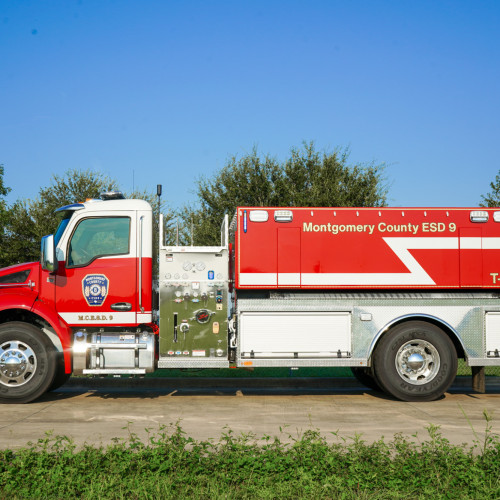

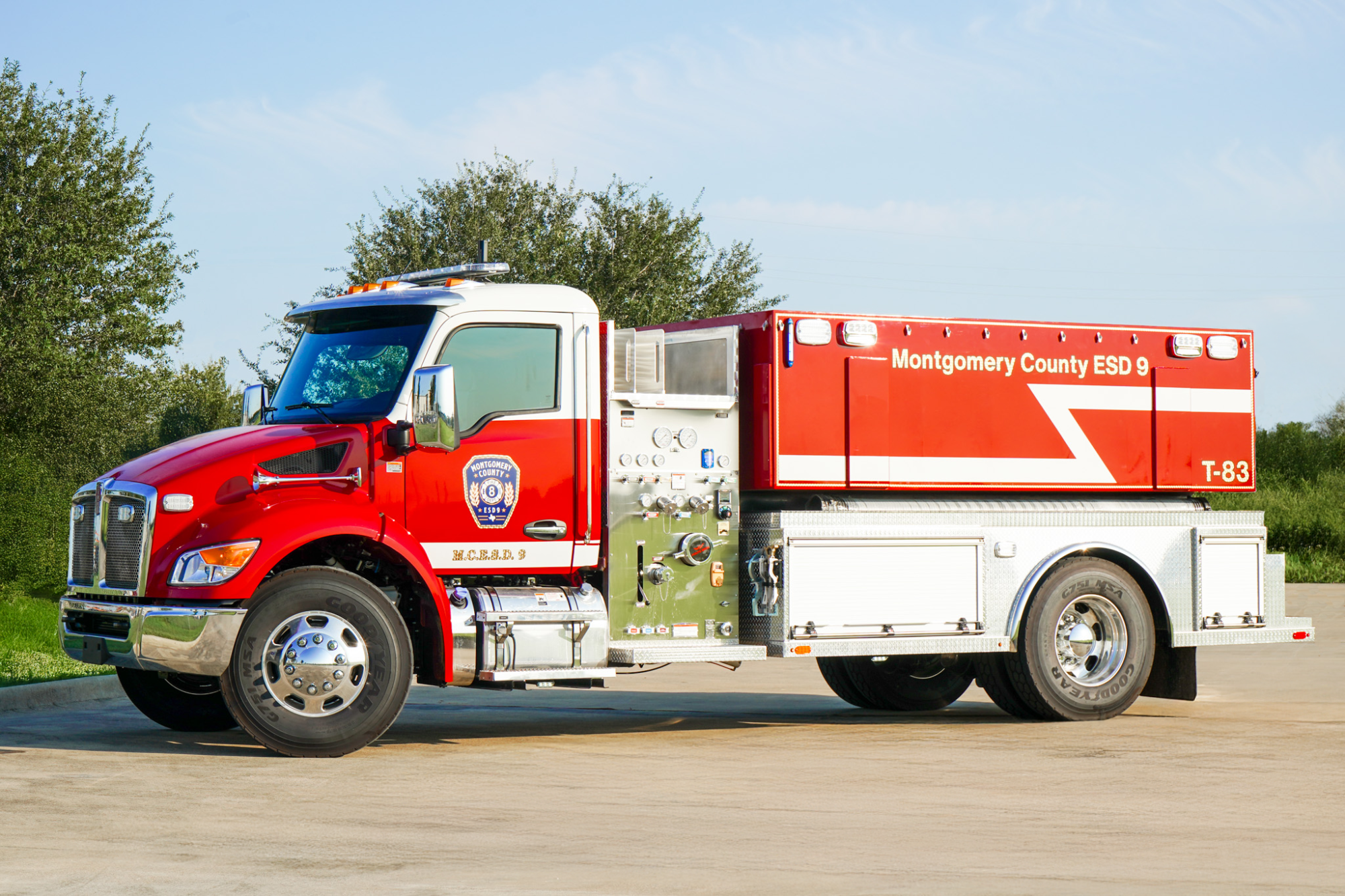

Fouts Fire 2000 Gallon Tanker

OVERVIEW

The 2000-gallon tanker is the leanest tanker in the Fouts Fire line, built on a Kenworth chassis, with all the features you need for fast deployment and containment across a variety of calls. When you face bridges with weight restrictions or long, steep driveways, this tanker cannot be beat.

This unit is available for striping, lettering, and delivery to your station within weeks.

Get Started

OVERVIEW

The 2000-gallon tanker is the leanest tanker in the Fouts Fire line, built on a Kenworth chassis, with all the features you need for fast deployment and containment across a variety of calls. When you face bridges with weight restrictions or long, steep driveways, this tanker cannot be beat.

This unit is available for striping, lettering, and delivery to your station within weeks.

Get Started

Fouts Fire 2000 Gallon Tanker

Tanker

Fouts Fire

75120

Kenworth T480

450 HP

La Grange

2000

Hale, MBP 1000 GPM

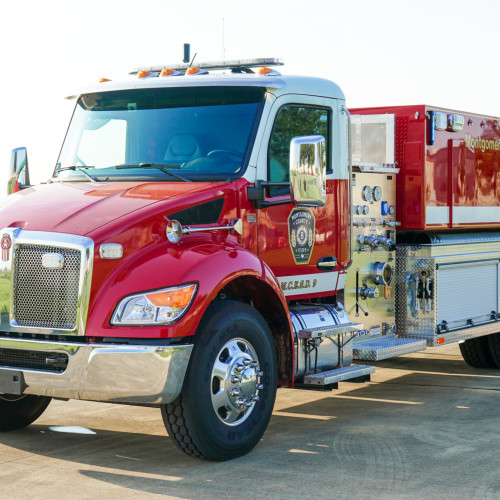

Chassis Details
Chassis

Kenworth, T-480, 2-Door

Engine

450 HP Engine

Transmission

Allison 3000, 5-Speed

GVW

40 600 LBS. (Front Axle: 14 600 LBS | Rear Axle: 26 000 LBS.)

Wheels

Alcoa Mirror Polish Aluminum

Battery Conditioner

A Kussmaul Chief 6012 series battery conditioner

Auxiliary Air Compressor

A Kussmaul 12V auxiliary air compressor

Fuel Tank Capacity

50 Gallons

Air Horns

Two (2) Hadley chrome plated

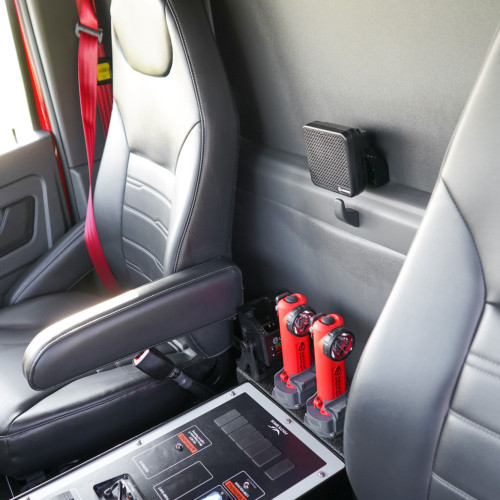

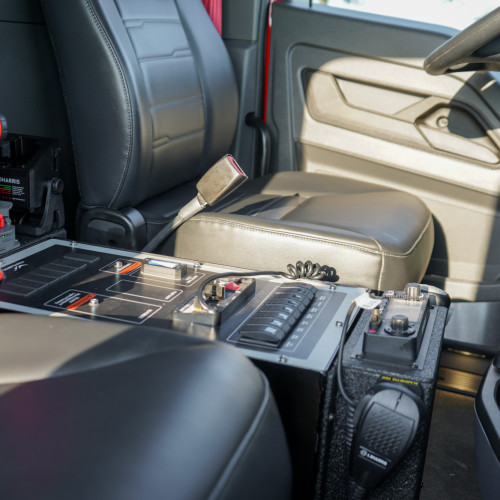

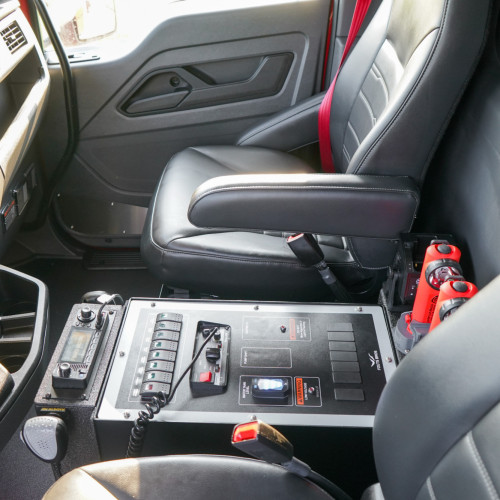

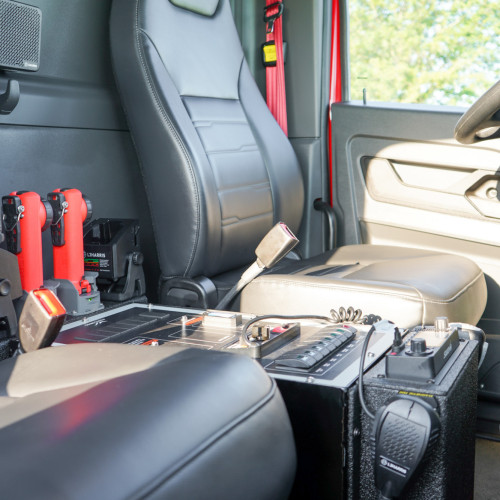

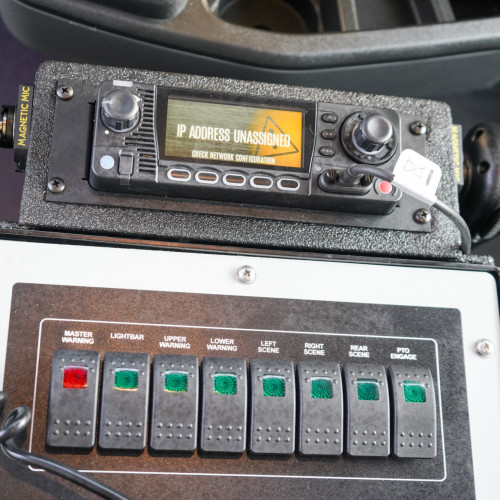

Center Console

Yes

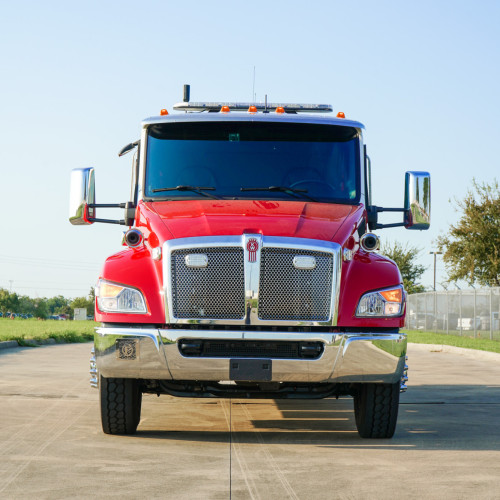

Front Bumper

Q2 and one (1) 1" booster reel

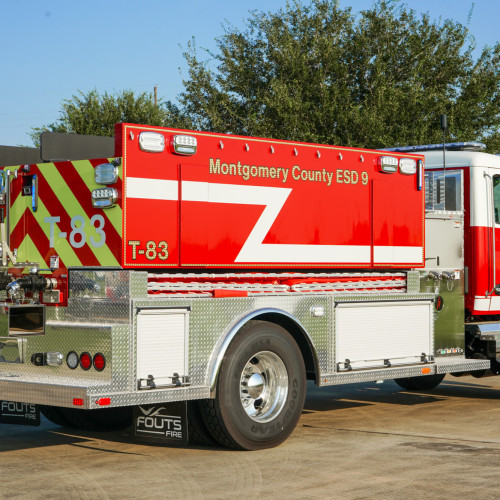

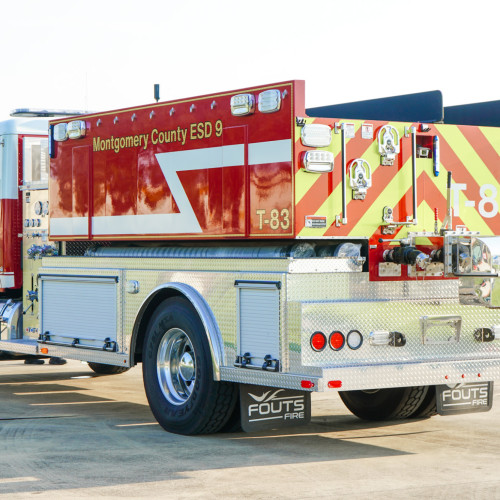

Body Details
Tank

2000 US Gallons

Hard Suction

Two (2) 6.00" X 10" sections of suction hoses

Body

Aluminum diamond plate

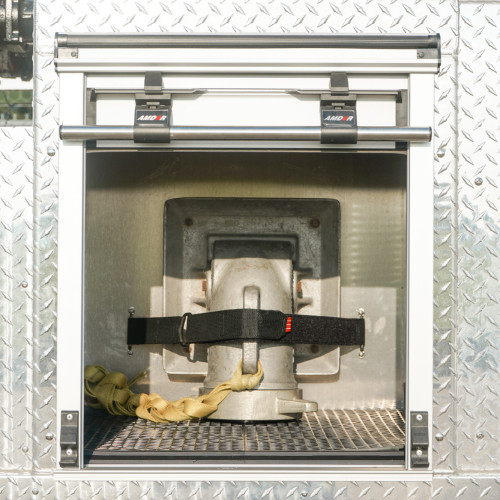

Compartment Door Type

Amdor roll-up doors, satin finish

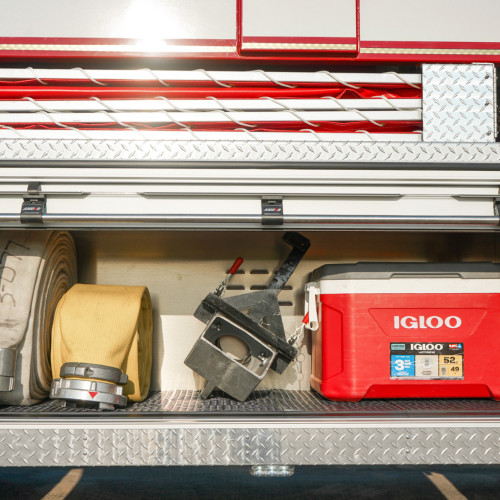

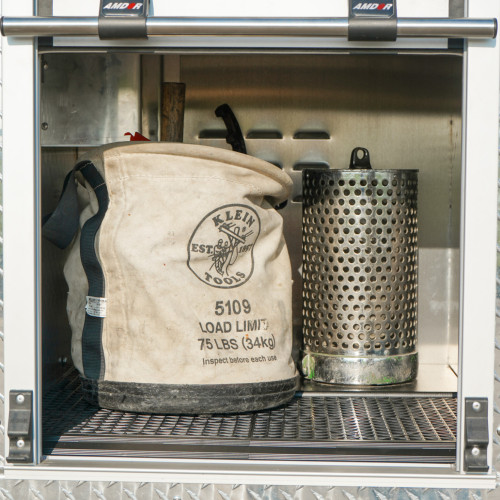

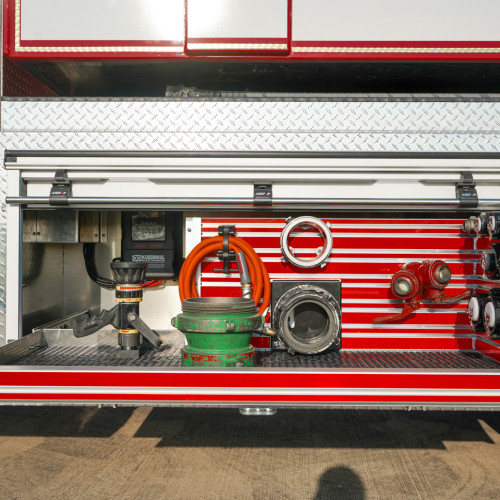

Compartment L1 & R1

Approx. 60.00"WX26.00"DX27.00"H

Compartment L2 & R2

Approx. 60.00"WX26.00"DX27.00"H

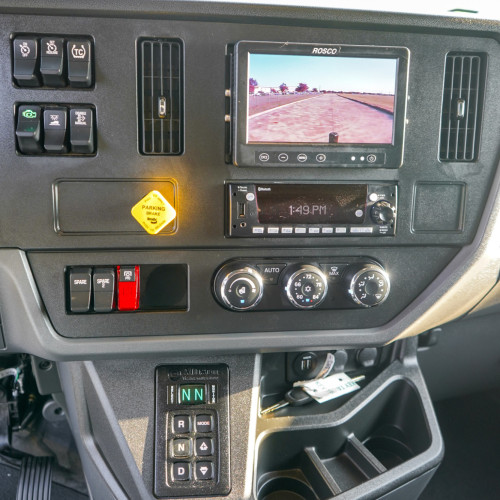

Rear Camera Notch

Recessed mounting area for a backup camera

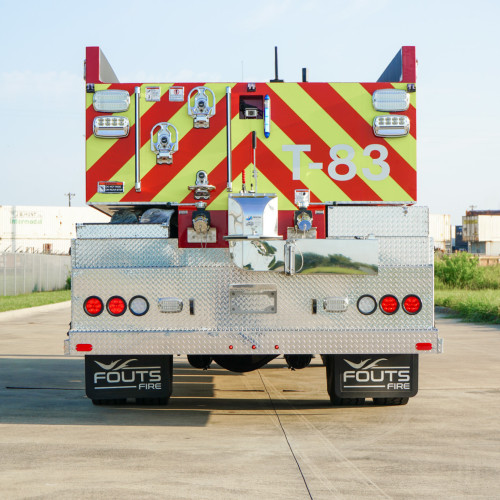

Rear Dump Valve

Swivel and manual extension, Stainless Steel

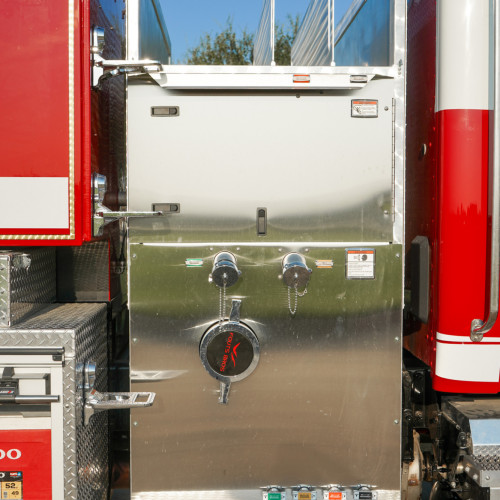

Direct Tank Fill

Two (2) 2.50" Akron

Hose Bed Cover

Vinyl

Additional

Custom in-house graphics can be applied to the unit

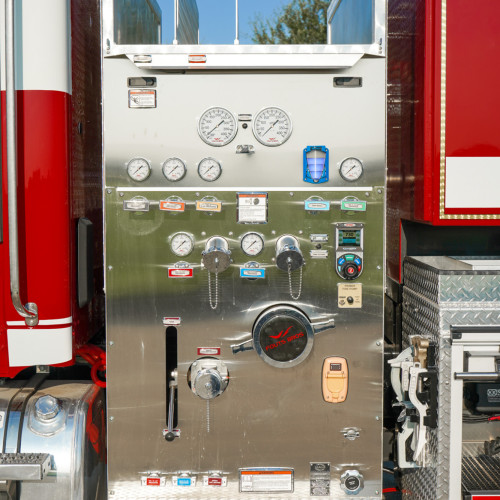

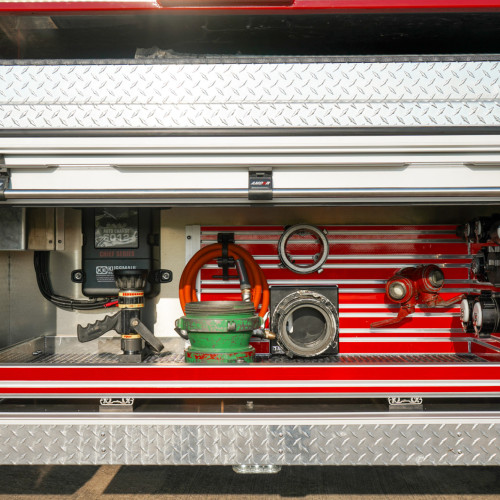

Pump Plumbing Details
Pump

Hale, MBP, 1000 GPM, Side Mount

Special Features

Pump and Roll

Pump Shift

Pump and Roll - MBP/RSD

Hose Threads

NST hose threads

Master Pump Drain

A Class 1 master pump drain

Priming System

A Trident model manual AirPrime

Intake Relief Valve

Class 1 stainless-steel intake relief valve

Pressure Governor System

Fire Research Pump Boss Max series PBA501-D00

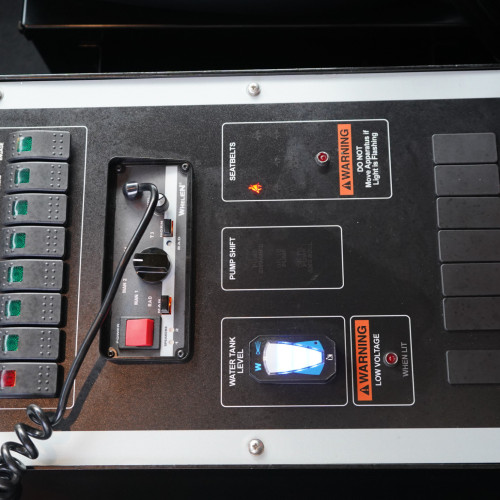

Water Level Gauge

One (1) Innovative Controls Soft-Glo & Three (3) Innovative Controls Soft-Glo Mini Monster

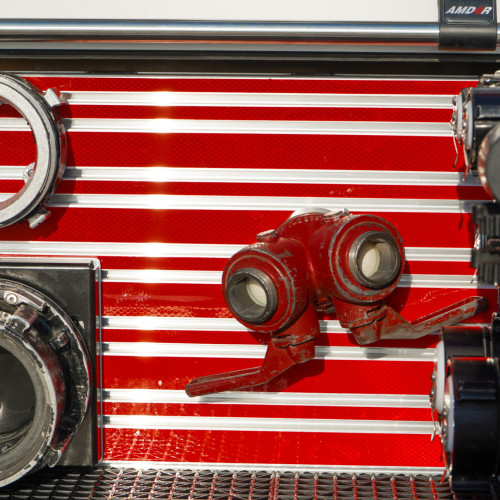

Discharges

Four (4) 2.50", Two (2) 1.75", & One (1) 1.50"

Lighting Details
12 Volt Electrical System

Yes

Cab Ground Lights

Two (2) LED chassis ground lights

Ground Lights

Pump panel, front, and rear

Ground Lights Activation

Activate when the parking brake is applied

Emergency Lights

Whelen M Series Emergency Lights

Scene Lights

Whelen M Series Emergency Lights

Lightbar

One (1) Whelen model JE2NFPA 56.00" lightbar

Siren and Control

One (1) Whelen model 295SLSA1

Siren Speaker

One (1) Federal Signal model ES100
