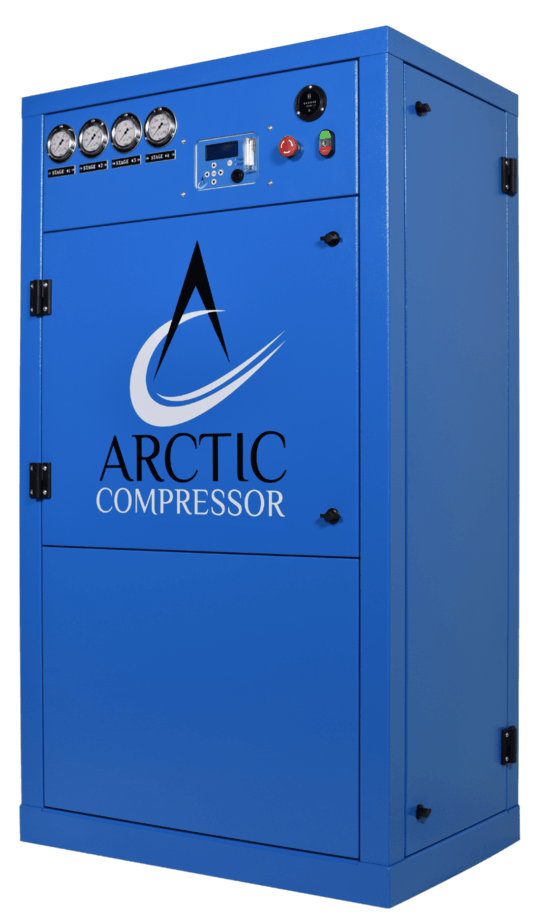

Arctic 10 HP Compressor

3 or 4 Stage Arctic Compressor Block:

• Air Cooled with a High Velocity, 10 Bladed Fan
• Relief Valve on All Stages
• Aluminum Inter Cooler
• Stainless Steel After Cooler
• Interstage and Final Moisture Separators
• Aluminum Crankcase
• Forged Steel Crankshaft
• Cast Iron Cylinders
• Fully Enclosed Sound Dampened Cabinet
• Lift Off Panel Hinges
• Liquid Filled Interstage Pressure Gauges
• Moisture/Carbon Monoxide Visual Indicator
• 3qt Oil Capacity
• Double Rubber Vibration Isolation
• Automatic Condensate Drain System
• Pressure Switch
• Hour Meter
• Single or Three Phase Electric Motor
• 76 dB a 1 Meter

Purification

• 24,000 Cu. Ft. at 80 degrees Fahrenheit filtration system designed to provide CGA Grade "E" breathing air
• System uses dryer bed to remove water in excess of dew point -65 degrees (NFPA 1500 Standard)
• Activated charcoal and a carbon monoxide catalyst remove remaining contaminants to provide CGA Grade "E" breathing air

Optional Features

• Real-time electronic CO monitor
• Additional filtration capacity
• Low oil level shutdown

• 6000 PSI
• 14 CFM
• 10 HP
• 4 Stages
• 1400 RPM

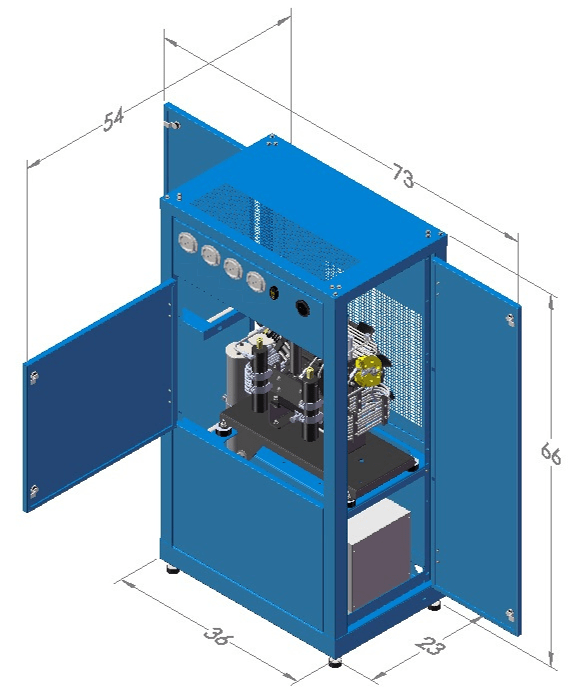

• 36" x 23" x 66"
• 700 lbs

• 1" NPT Air Intake
• Must be Minimum 6" from Wall
